How Is The Dredging Capacity of A Cutter Suction Dredger Measured?

Understanding Dredging Capacity Measurement for Cutter Suction Dredgers: A Comprehensive Guide by iTECH Dredge

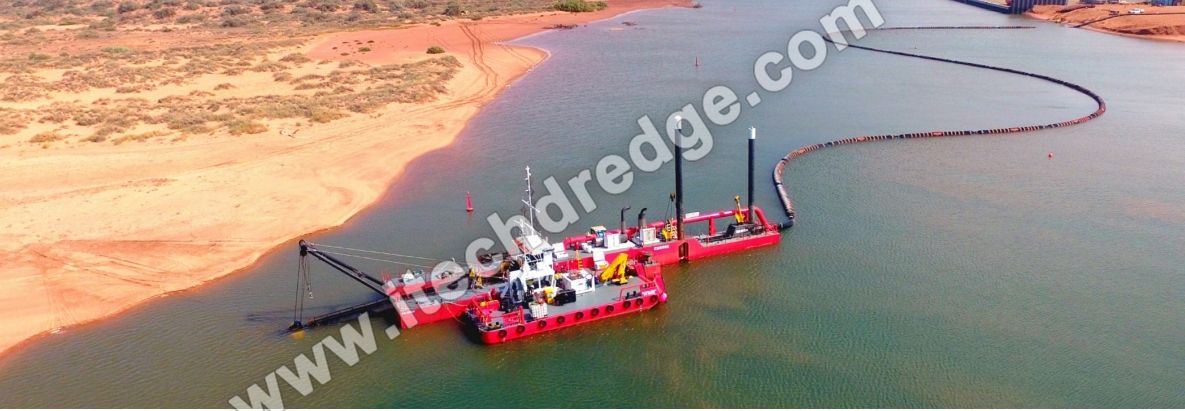

Introduction to Cutter Suction Dredgers and Dredging Capacity

Cutter suction dredgers (CSDs) are essential machinery in marine engineering, renowned for their efficiency in excavating and transporting sediments, mud, and soil in dredging projects. As a leading provider of advanced dredging solutions, iTECH Dredge understands that measuring dredging capacity is critical for project planning, performance optimization, and client assurance. Dredging capacity refers to the volume of material a CSD can excavate, transport, and deposit within a specific timeframe, and its measurement involves a complex interplay of hydraulic, mechanical, and environmental factors.

Key Metrics for Measuring Dredging Capacity

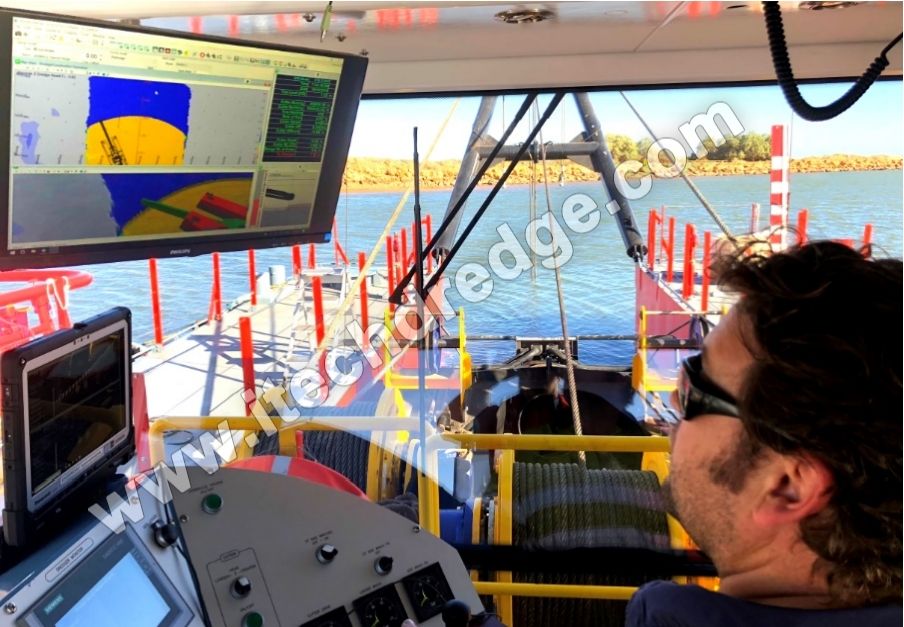

1. Volumetric Flow Rate (Q) and Material Transport Capacity

The foundational metric of dredging capacity is the volumetric flow rate of the dredger’s pump system, measured in cubic meters per hour (m³/h). This rate reflects the volume of slurry (a mixture of water and excavated material) that the dredger can handle. For iTECH Dredge’s cutters, this capacity is determined by:

· Pump Performance: High-efficiency centrifugal pumps in iTECH Dredge machines are designed to handle high-density slurries, with capacities ranging from 5,000 to 50,000 m³/h depending on the model (e.g., the iTECH-8000 series features pumps capable of 30,000 m³/h at peak efficiency).

· Pipe Diameter and Length: Larger diameter pipes (e.g., 600–1,200 mm) minimize hydraulic resistance, allowing higher flow rates. iTECH Dredge’s modular pipe systems are optimized for both flow efficiency and transport distance.

Example Calculation:

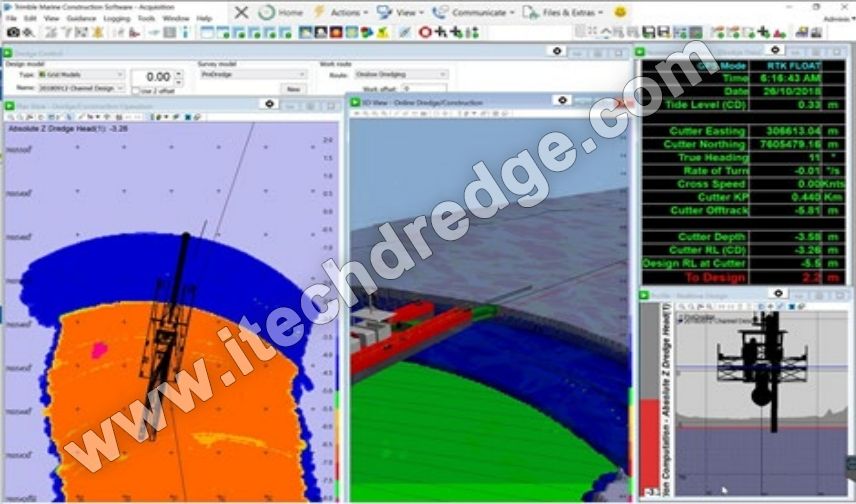

If a CSD pumps slurry at 20,000 m³/h and the slurry contains 25% solid material by volume, the effective dredging capacity (solid material) is 20,000 m³/h × 0.25 = 5,000 m³/h.

2. Solid Concentration (C) and Slurry Density

The solid concentration in the slurry directly impacts dredging efficiency. Higher concentrations mean more material is transported per unit volume, but excessively high densities can reduce pump performance. iTECH Dredge utilizes advanced sensors to monitor:

· Mass Concentration (kg/m³): Measured using gamma densitometers or acoustic sensors, which assess the mass of solids per cubic meter of slurry.

· Volume Concentration (%): Calculated as the ratio of solid volume to total slurry volume. iTECH Dredge’s cutters are engineered to maintain optimal concentrations (typically 15–35%) for different soil types, such as clay, sand, or silt.

iTECH Dredge Technology: Our integrated slurry management systems include real-time concentration monitoring, allowing operators to adjust cutting parameters (e.g., cutter speed, suction depth) to maximize solid transport without compromising pump efficiency.

3. Excavation Depth and Reach

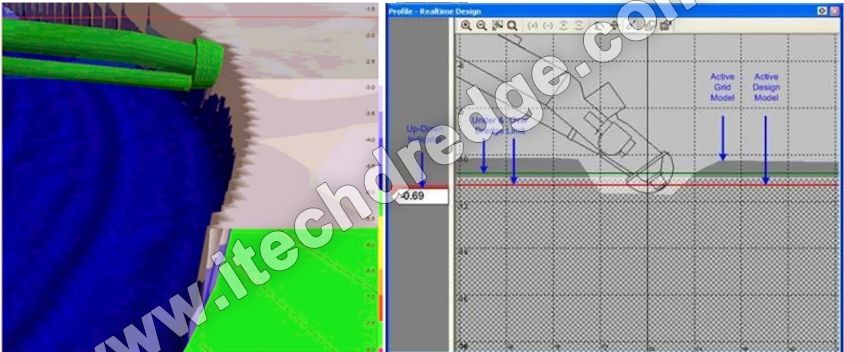

The maximum excavation depth and horizontal reach of a CSD define its operational scope:

· Depth Capacity: iTECH Dredge cutters can excavate up to 40 meters below water level (e.g., the iTECH-6000 model), depending on the dredge’s hull design and ladder length.

· Swing Radius: The horizontal reach of the cutter head, influenced by the dredge’s swing mechanism. iTECH Dredge’s hydraulic swing systems enable precise control over a radius of 20–60 meters, enhancing coverage in complex project areas.

4. Productivity Metrics: Bank Cubic Meters per Hour (BCM/h)

The industry standard for measuring effective dredging capacity is bank cubic meters per hour (BCM/h), which accounts for the compacted volume of material in its original state (before excavation). This metric is crucial for project billing and planning:

· BCM Calculation: BCM/h = Volumetric Flow Rate (m³/h) × Solid Concentration (%) × Compaction Factor
The compaction factor (typically 0.8–1.2) adjusts for the expansion of material when excavated. For example, loose sand may have a factor of 1.05, while dense clay may have 0.9.

· iTECH Dredge’s Productivity Guarantee: Our cutters achieve BCM/h rates of 2,000–15,000, depending on soil conditions. The iTECH-10000 model, designed for large-scale projects, can reach 12,000 BCM/h in sandy sediments.

Factors Influencing Dredging Capacity Measurement

1. Soil and Sediment Characteristics

Different materials require varying excavation techniques:

· Hard vs. Soft Soils: Hard soils (e.g., rock, compacted clay) reduce cutter efficiency, while soft sediments (sand, silt) allow higher flow rates. iTECH Dredge’s adaptive cutter heads (e.g., teeth, dragheads) are interchangeable to optimize performance for specific soil types.

· Abrasion and Corrosion: Abrasive materials (e.g., gravel) can wear down pump components. iTECH Dredge uses high-chrome alloys and ceramic coatings to extend component lifespan in harsh conditions.

2. Operational Parameters and Equipment Design

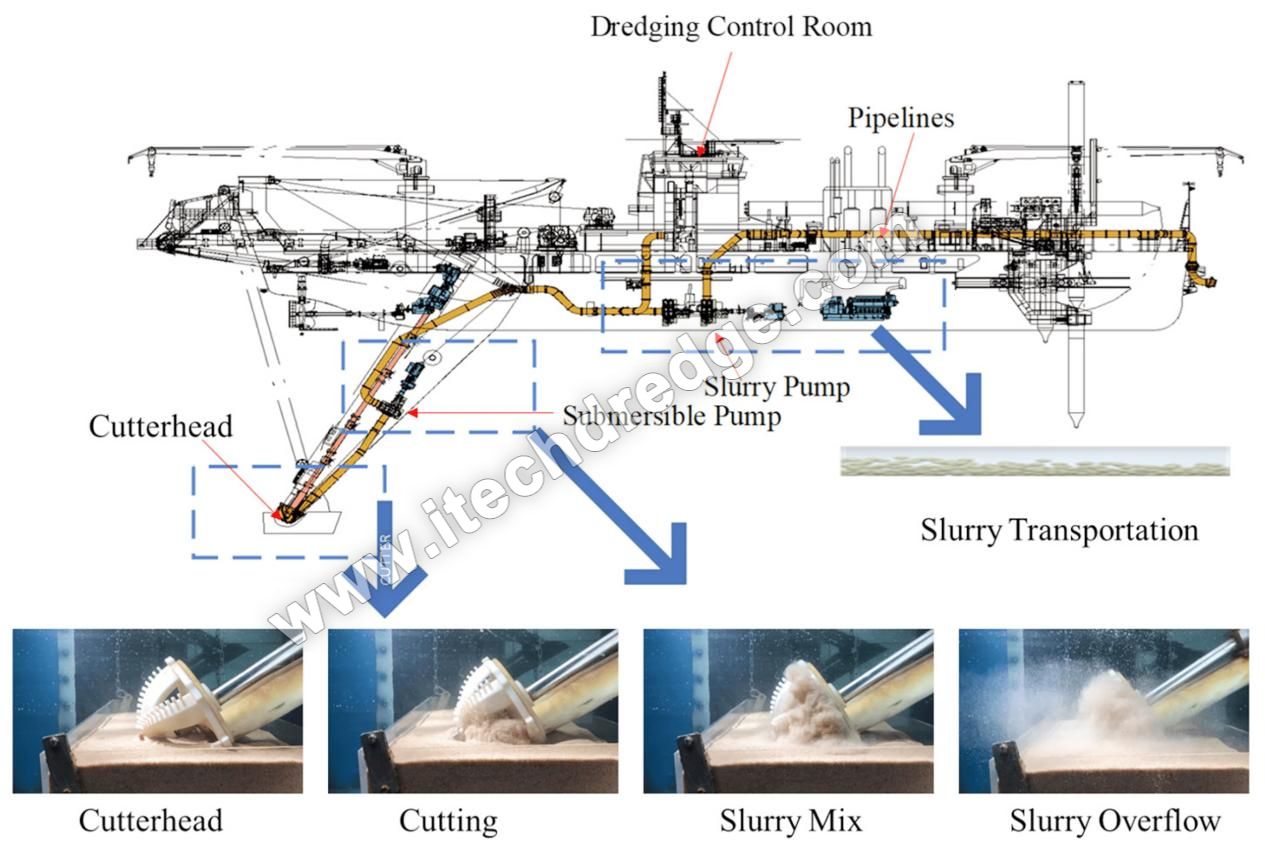

· Cutter Power and Rotational Speed: Higher cutter power (e.g., iTECH Dredge’s 5,000 kW motors) and optimal rotation speeds (15–40 RPM) enhance excavation efficiency.

· Suction Pipe Diameter and Elevation: Longer pipes or higher elevation differences increase hydraulic losses. iTECH Dredge’s hydraulic models simulate flow dynamics to minimize energy waste.

3. Environmental Conditions

· Water Currents and Tides: Strong currents can disrupt slurry flow, while tides affect excavation depth. iTECH Dredge’s dynamic positioning systems (DPS) maintain stability in challenging environments.

· Temperature and Salinity: Extreme temperatures or high salinity can impact slurry viscosity. Our dredgers are designed for global operations, from tropical seas to cold-water regions.

Measurement Methods and Technologies Used by iTECH Dredge

1. Real-Time Monitoring Systems

iTECH Dredge integrates advanced sensors and IoT technology:

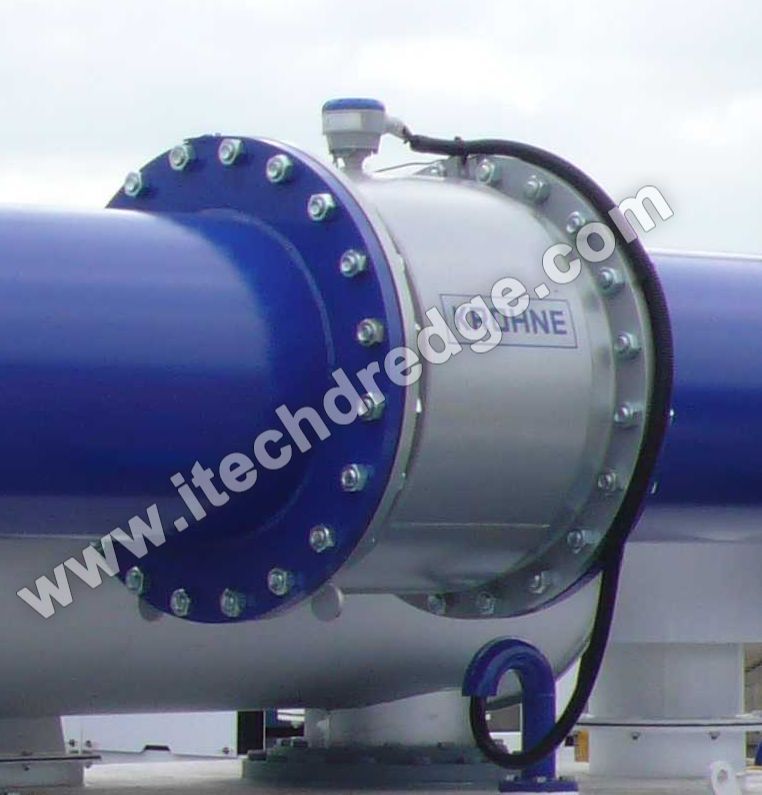

· Flow Meters: Electromagnetic or ultrasonic flow meters measure slurry velocity and volume in real time.

· Pressure Transducers: Placed along the pipe network to detect blockages or pressure drops, ensuring optimal flow.

· GPS and Depth Sensors: Track the cutter head’s position and excavation depth, enabling precise volume calculations.

2. Data Analytics and Performance Modeling

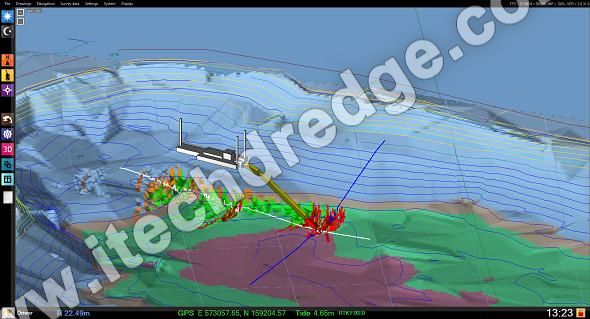

· iTECH Dredge’s DredgeSmart Software: A proprietary platform that aggregates sensor data to calculate real-time BCM/h, predict maintenance needs, and optimize operational parameters.

· 3D Simulation: Pre-project modeling using software like AutoCAD and Bentley Systems to forecast dredging capacity based on site topography and soil data.

3. Field Calibration and Testing

· Commissioning Tests: New iTECH Dredge cutters undergo rigorous sea trials, including:

· No-Load Tests: To verify pump efficiency without slurry.

· Load Tests: Using representative sediments to measure actual capacity.

· Ongoing Performance Audits: Regular calibration of sensors and equipment to ensure measurement accuracy.

Industry Standards and Compliance

iTECH Dredge adheres to international standards for capacity measurement, including:

· ISO 19902 (Marine Construction): Ensuring consistency in capacity reporting.

· Dutch Dredging Standards (NEN-EN 1536): For precision in soil classification and productivity calculations.

· Client-Specific Specifications: Tailoring measurements to meet project requirements, such as environmental impact assessments or contract-based productivity targets.

Optimizing Dredging Capacity: iTECH Dredge’s Solutions

1. Customized Dredging Systems

iTECH Dredge designs cutters for specific capacity needs:

· Modular Designs: Allowing easy upgrades (e.g., larger pumps or longer ladders) to increase capacity mid-project.

· Energy-Efficient Systems: High-efficiency motors and variable frequency drives (VFDs) that adjust power consumption based on load, maximizing output per kilowatt.

2. Expert Operational Training

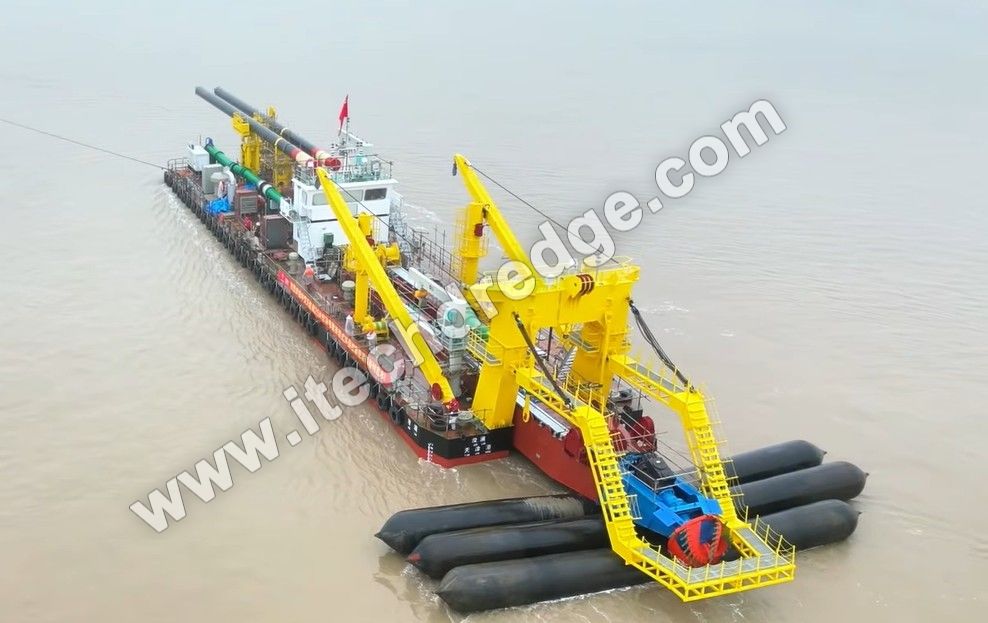

· iTECH Dredge Academy: Providing operators with training on capacity optimization, including how to adjust cutter speed, slurry concentration, and pipe configurations for different projects.

3. Post-Project Analysis and Reporting

· Comprehensive Capacity Reports: Delivered to clients, detailing actual vs. projected performance, with recommendations for future projects.

· Long-Term Maintenance Plans: To ensure sustained capacity over the dredger’s lifecycle, including periodic equipment upgrades.

iTECH Dredge’s Commitment to Precision and Performance

Measuring dredging capacity in cutter suction dredgers requires a holistic approach to technical metrics, environmental factors, and operational expertise. As a global leader, iTECH Dredge combines cutting-edge technology, engineering excellence, and industry knowledge to deliver accurate capacity measurements and optimize dredging efficiency. Whether for port expansion, river maintenance, or land reclamation, our solutions are designed to meet the most demanding capacity requirements while ensuring reliability and cost-effectiveness.
