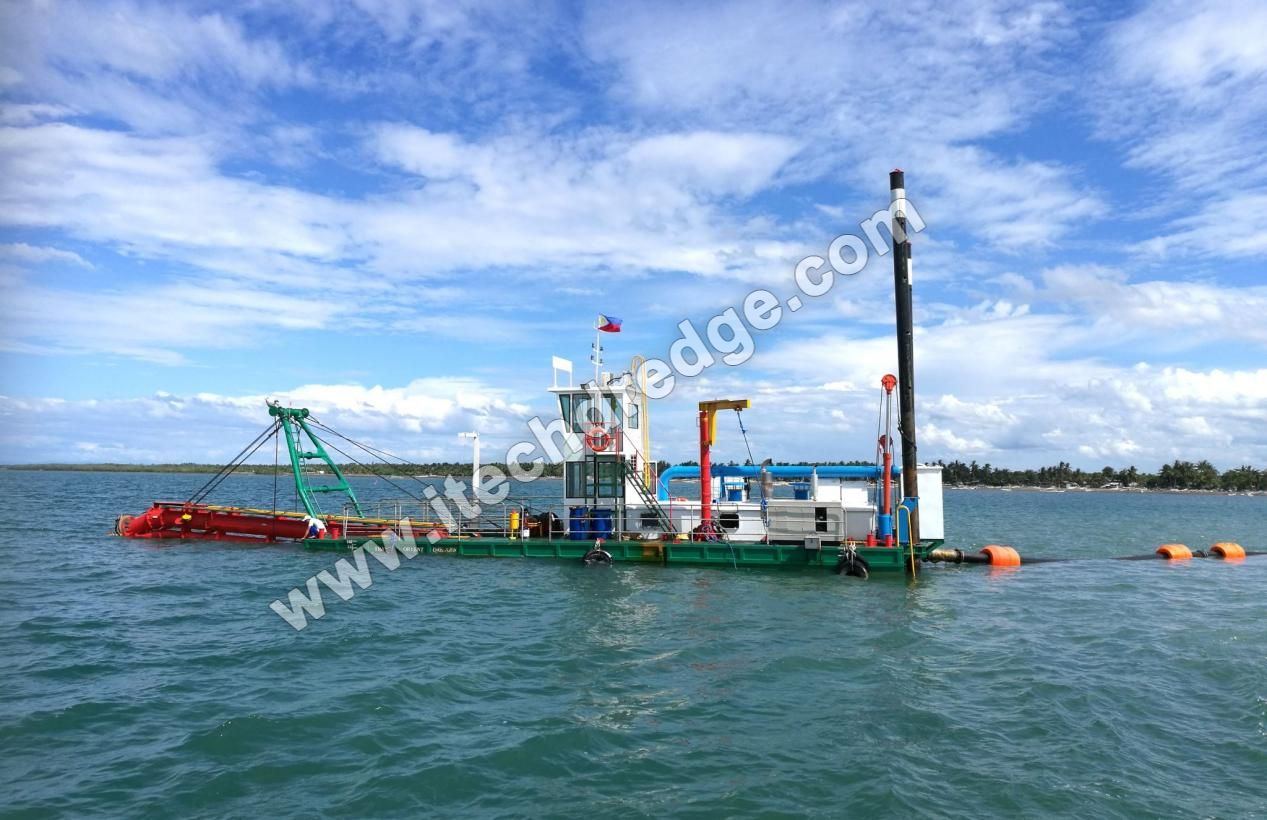

Safety Precautions for Operating a Cutter Suction Dredger
A cutter suction dredger is a powerful and complex piece of equipment used in various marine and hydraulic engineering projects. Due to its size, power, and the nature of its operations (working in water, dealing with heavy materials, and having multiple moving parts), operating it safely is of utmost importance. This web page aims to detail the comprehensive safety precautions that should be followed when operating a cutter suction dredger.

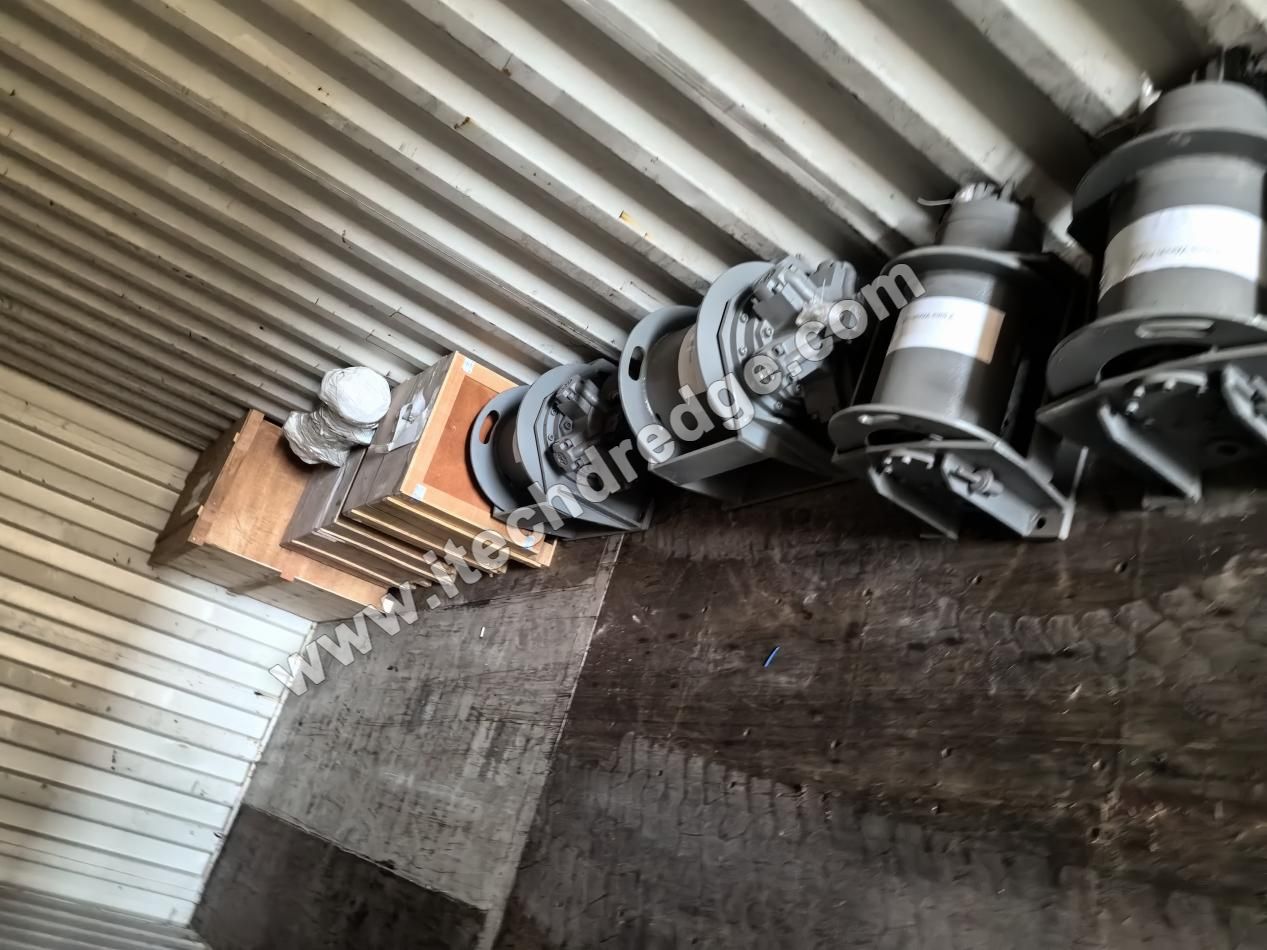

Structural Integrity:
Thoroughly inspect the entire dredger for any signs of structural damage. Check the hull, superstructure, and all supporting frames. Look for cracks, deformations, or corrosion that could compromise the integrity of the vessel. For example, in saltwater environments, corrosion can be a significant issue, so pay close attention to areas where metal is exposed to water, such as the hull plates and the base of the cutter head structure.
Inspect the spuds (the vertical poles used for anchoring) for any bending, cracks, or excessive wear. Spuds are crucial for the stability of the dredger during operation, so any damage to them can lead to dangerous situations.
Mechanical Components:

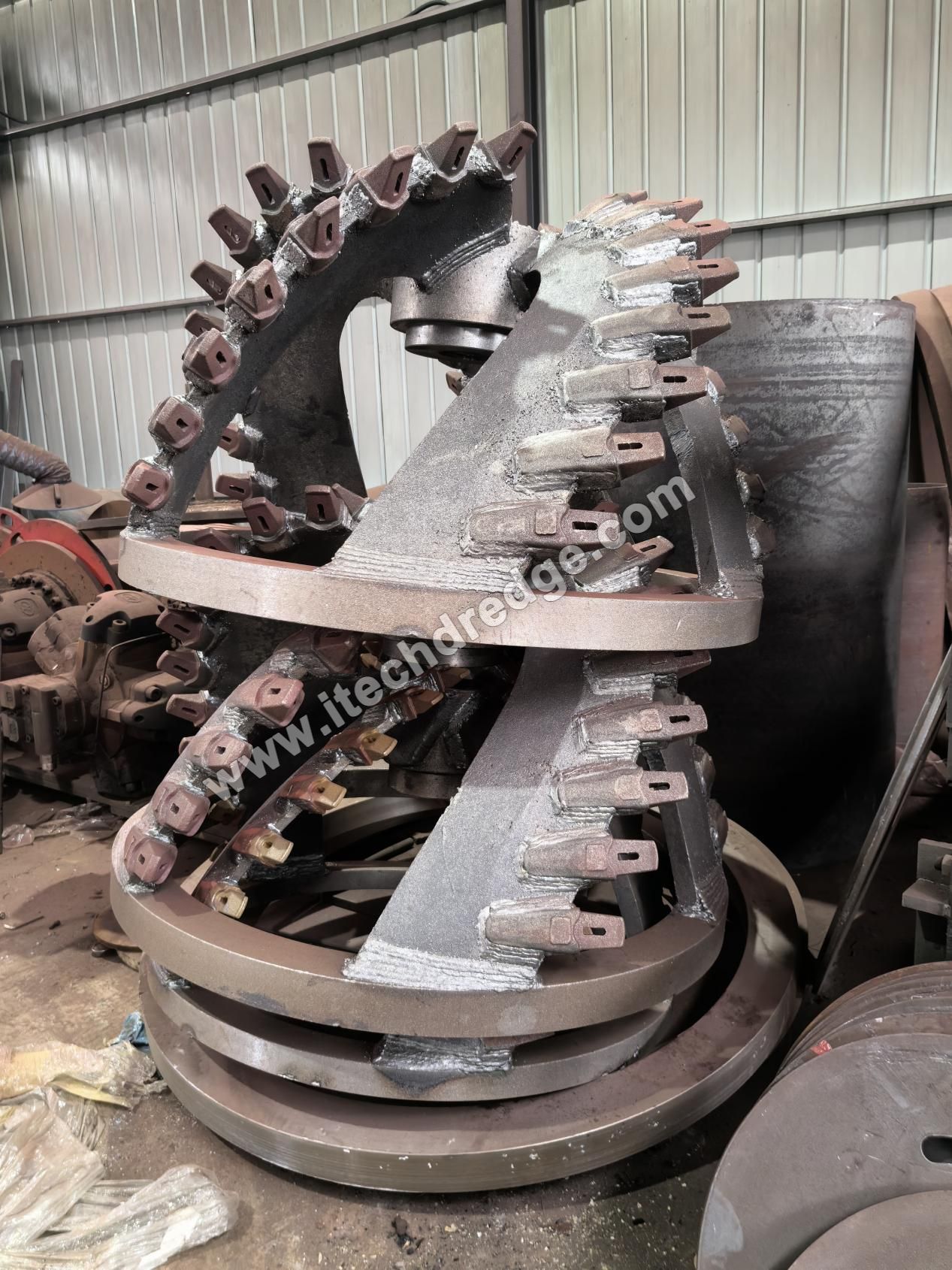

Check all mechanical components, including the cutter head, suction pump, winches, and conveyor systems. For the cutter head, ensure that the cutting teeth are securely attached, not worn out excessively, and not damaged. A loose or broken cutting tooth can be thrown off during operation, causing injury or damage to other parts of the dredger.
Inspect the suction pump for leaks, abnormal noises, or signs of wear in the impellers and casings. The pump is the heart of the dredging operation, and any malfunction can lead to a breakdown during work, potentially causing hazards.
Examine the winches that control the spuds, cutter head, and suction pipe. Check the cables or chains for fraying, rust, or excessive wear. Ensure that the winch brakes are in good working condition, as they are essential for controlling the movement of heavy components.
Electrical and Control Systems:
Inspect the electrical systems, including the wiring, connectors, and control panels. Look for any signs of damage, such as frayed wires, loose connectors, or water ingress. Water and electricity are a dangerous combination, so any indication of water in the electrical compartments should be addressed immediately.
Test the control systems, including the sensors, automation features, and emergency stop buttons. Ensure that all controls are responsive and accurate. For example, the sensors that monitor the depth of the cutter head, the pressure in the suction pump, and the position of the spuds should be calibrated correctly and providing accurate readings.
Personal Protective Equipment (PPE):
Ensure that all operators and crew members have the appropriate PPE. This includes life jackets, hard hats, safety boots, high - visibility clothing, and hearing protection. Life jackets are essential as the dredger operates on or near water, and in case of an accident, they can save lives. Hard hats protect against falling objects, which can be a risk during maintenance or when working on the deck. Safety boots with steel toes and slip - resistant soles protect the feet from heavy equipment and prevent slips on wet decks. Hearing protection is necessary due to the high noise levels generated by the dredger's engines, pumps, and cutter head.
Check that the PPE is in good condition, not damaged, and fits properly. For example, life jackets should be properly inflated (if inflatable) or have intact buoyancy materials.
Safety Devices on the Dredger:
Verify the functionality of safety devices such as fire extinguishers, life rafts, and emergency escape routes. Fire extinguishers should be easily accessible, fully charged, and of the appropriate type for the potential fire hazards on the dredger (e.g., Class B for fuel - related fires).
Check the life rafts to ensure they are properly stored, in good condition, and their release mechanisms are functional. Emergency escape routes should be clearly marked, unobstructed, and known to all crew members.
Weather Conditions:
Before starting operations, check the weather forecast. Do not operate the dredger in severe weather conditions such as storms, high winds, or heavy fog. High winds can affect the stability of the dredger, especially when it is anchored with spuds. Storms can bring strong currents and waves, making it difficult to control the dredger and increasing the risk of capsizing.
Monitor weather conditions during operation. If the weather deteriorates, take appropriate action, such as seeking shelter or suspending operations.
Water and Seabed Conditions:
Assess the water depth, current, and tide conditions. Operating in water that is too shallow can cause the dredger to run aground, damaging the hull and other components. Strong currents can affect the stability of the dredger and the control of the cutter head and suction pipe.
Evaluate the seabed conditions, including the type of material (e.g., soft silt, hard rock) and the presence of any obstacles such as large rocks, sunken ships, or pipelines. Operating the cutter head over unknown obstacles can cause damage to the cutter head and pose a safety risk.
Training:
Ensure that all crew members are properly trained in operating the cutter suction dredger. Training should cover not only the normal operation procedures but also emergency procedures. Operators should be familiar with the functions of all controls, the operation of the cutter head, suction pump, and other components, and how to respond to various malfunctions or emergencies.
Provide regular refresher training to keep crew members updated on the latest safety procedures and equipment changes.
Communication:
Establish clear communication channels among the crew members. Use radios or other communication devices to ensure that all operators can communicate effectively. For example, the operator of the cutter head should be able to communicate with the pump operator and the spud control operator to coordinate movements and operations.
Develop a set of standard communication signals or commands to avoid misunderstandings. In noisy environments, visual signals may also be necessary as a backup.

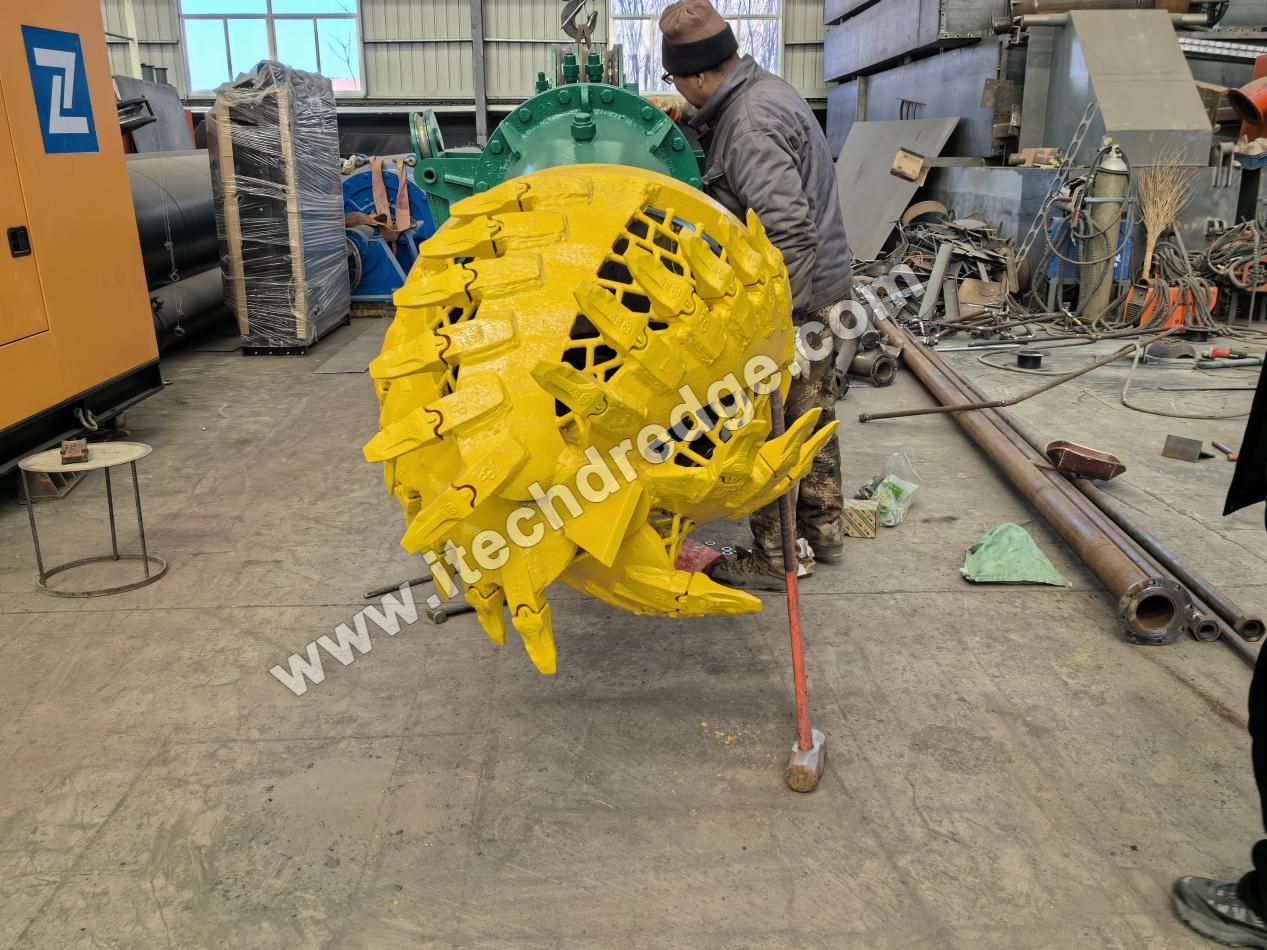

Starting and Stopping:
When starting the cutter head, do so gradually. Sudden start - ups can cause excessive stress on the motor, gears, and cutting teeth, leading to premature wear or damage. Also, a sudden start can create a shock wave in the suction pipe, potentially causing leaks or other problems.
When stopping the cutter head, follow the proper sequence to avoid damage. Allow the cutter head to slow down gradually before coming to a complete stop. This helps to prevent the sudden jolt that can occur if the power is cut off abruptly, which can damage the mechanical components.
Depth and Speed Control:
Control the depth of the cutter head carefully. Do not exceed the recommended maximum depth for the dredger, as this can cause the cutter head to become stuck in the seabed or put excessive strain on the suction pipe and ladder.
Adjust the speed of the cutter head according to the type of material being dredged. For example, when dredging hard rock, a slower speed may be necessary to prevent damage to the cutting teeth, while in soft silt, a higher speed can be used for more efficient operation.

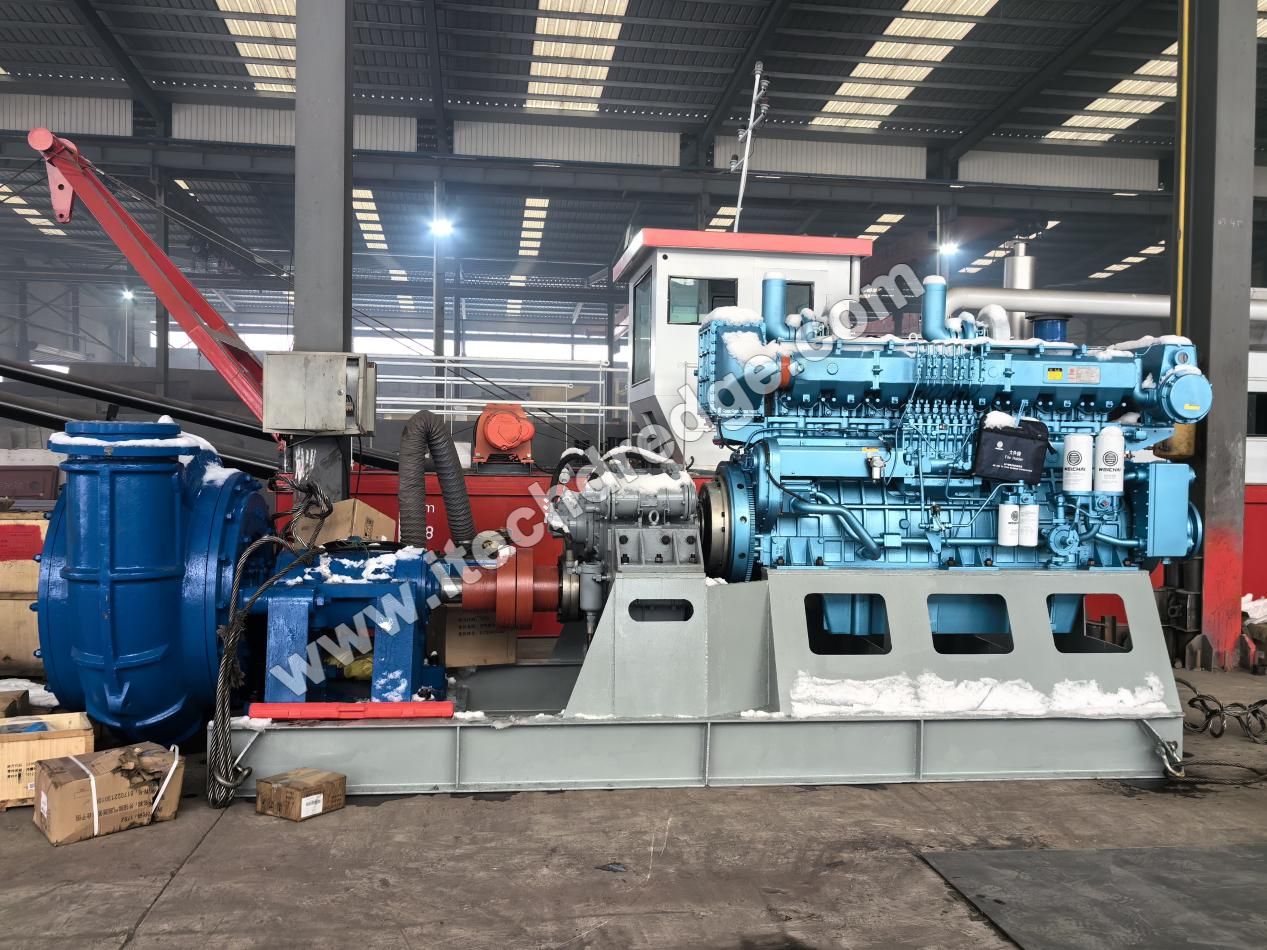

Pump Operation:
Monitor the suction pump's performance closely during operation. Keep an eye on the pressure gauges, flow meters, and temperature indicators. Abnormal pressure or temperature readings can indicate problems such as blockages in the pipeline, wear in the impeller, or insufficient lubrication.
Do not operate the suction pump at excessive pressures or flows, as this can cause damage to the pump and the pipeline. If a blockage is suspected, stop the pump immediately and take appropriate action to clear the blockage.

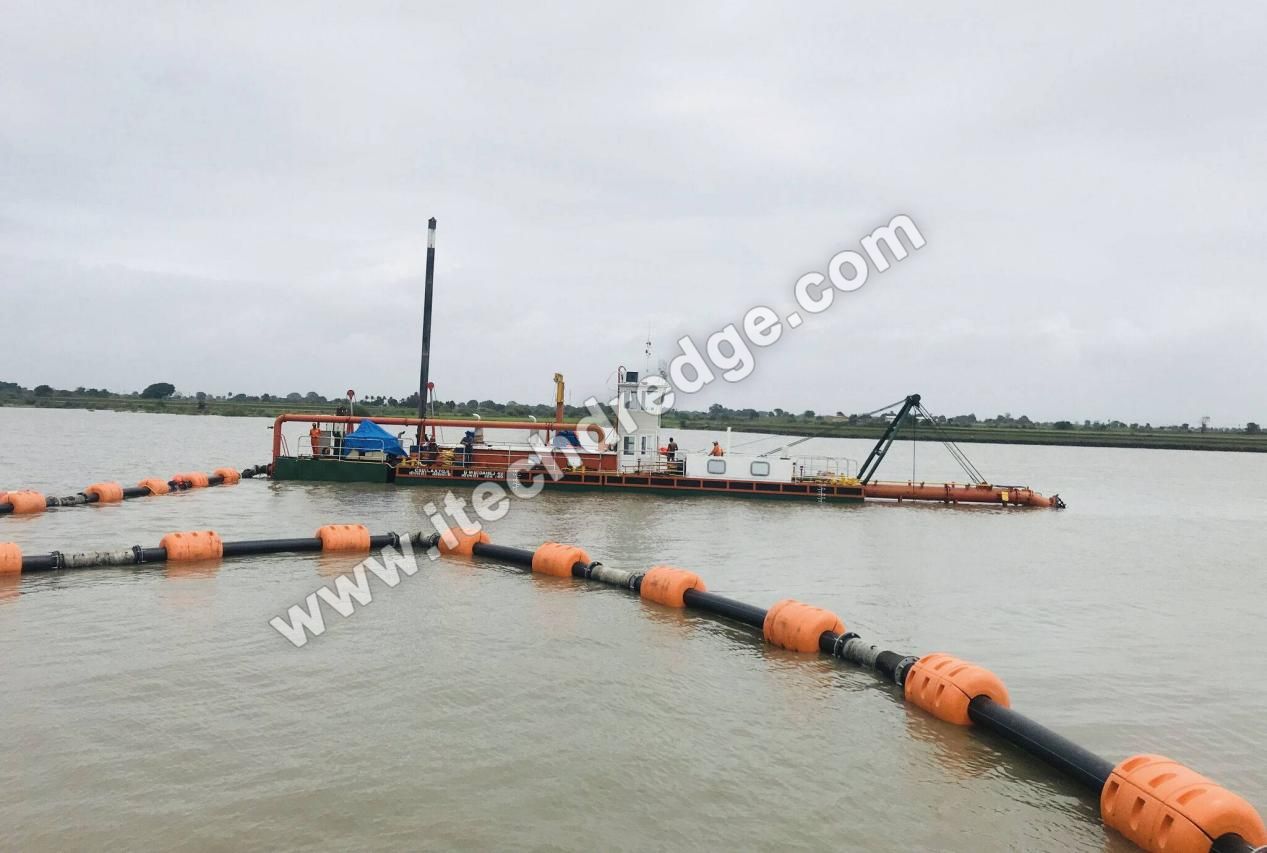

Pipeline Safety:
Inspect the suction and discharge pipelines regularly during operation. Look for signs of leaks, vibrations, or abnormal noises. A leak in the pipeline can lead to a loss of suction or discharge efficiency, and in some cases, can cause environmental pollution if the slurry is leaked into the water.
Ensure that the pipelines are properly supported and not subject to excessive bending or stress. Improperly supported pipelines can vibrate excessively, leading to damage and potential leaks.
Spud Deployment and Retrieval:
When deploying or retrieving spuds, do so slowly and carefully. Spuds are heavy and can cause serious injury or damage if they are dropped or mishandled. Use the winches to control the movement of the spuds precisely.
Ensure that the spuds are fully inserted into the seabed and properly anchored before starting dredging operations. A poorly anchored spud can cause the dredger to shift or become unstable during operation.
Anchoring in Different Conditions:
In different seabed conditions, adjust the anchoring method accordingly. For example, in soft seabeds, longer spuds or additional anchors may be needed to ensure stability. In hard seabeds, the spuds may need to be driven deeper or secured using different techniques.
Fire Prevention:
Keep all fuel storage areas clean and free of debris. Fuel leaks should be repaired immediately. Ensure that all electrical equipment is properly grounded to prevent sparks.
Prohibit smoking in areas where there is a risk of fire, such as near fuel tanks, engines, and pumps.

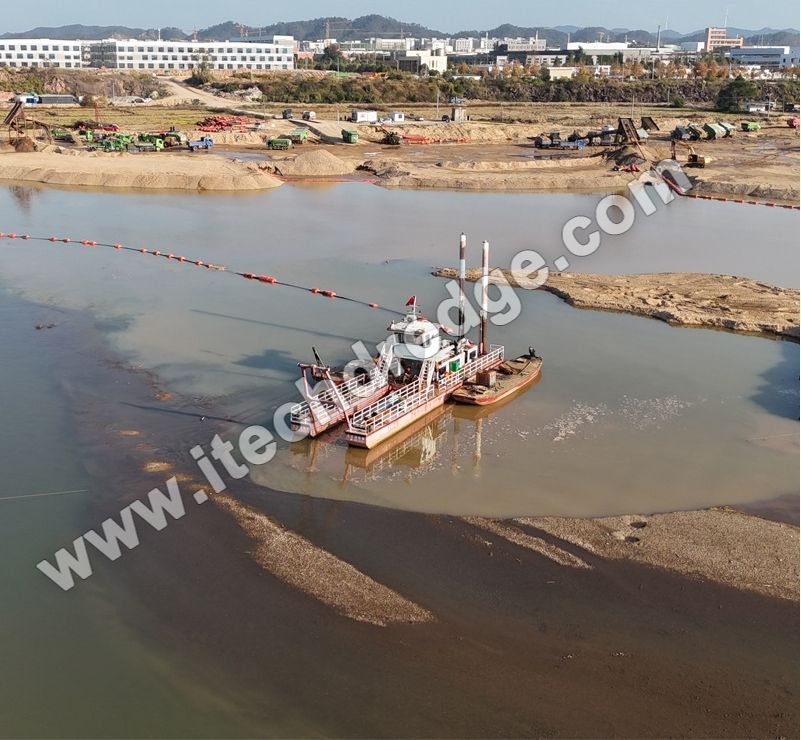

Fire Response:
In case of a fire, activate the fire alarm immediately and attempt to extinguish the fire using the appropriate fire extinguishers. If the fire is out of control, evacuate the crew to a safe location and contact external fire - fighting services.
Prevention:
Maintain the proper trim and stability of the dredger. Do not overload the dredger beyond its designed capacity. Ensure that the ballast tanks are properly filled or emptied to maintain stability.
In case of rough weather or high waves, take appropriate measures to maintain stability, such as reducing speed, changing course, or deploying additional anchors.
Response:
If the dredger starts to capsize or flood, activate the emergency alarms and evacuate the crew to the life rafts or other safe areas. Attempt to seal any leaks or take measures to stop the flooding if possible.
Prevention:
Regular maintenance and pre - operation checks can help prevent mechanical and electrical failures. However, in case of a failure during operation, have a contingency plan in place.
Response:
If a mechanical or electrical failure occurs, stop the affected equipment immediately to prevent further damage. Attempt to diagnose and repair the problem if possible, or secure the equipment and wait for professional assistance.

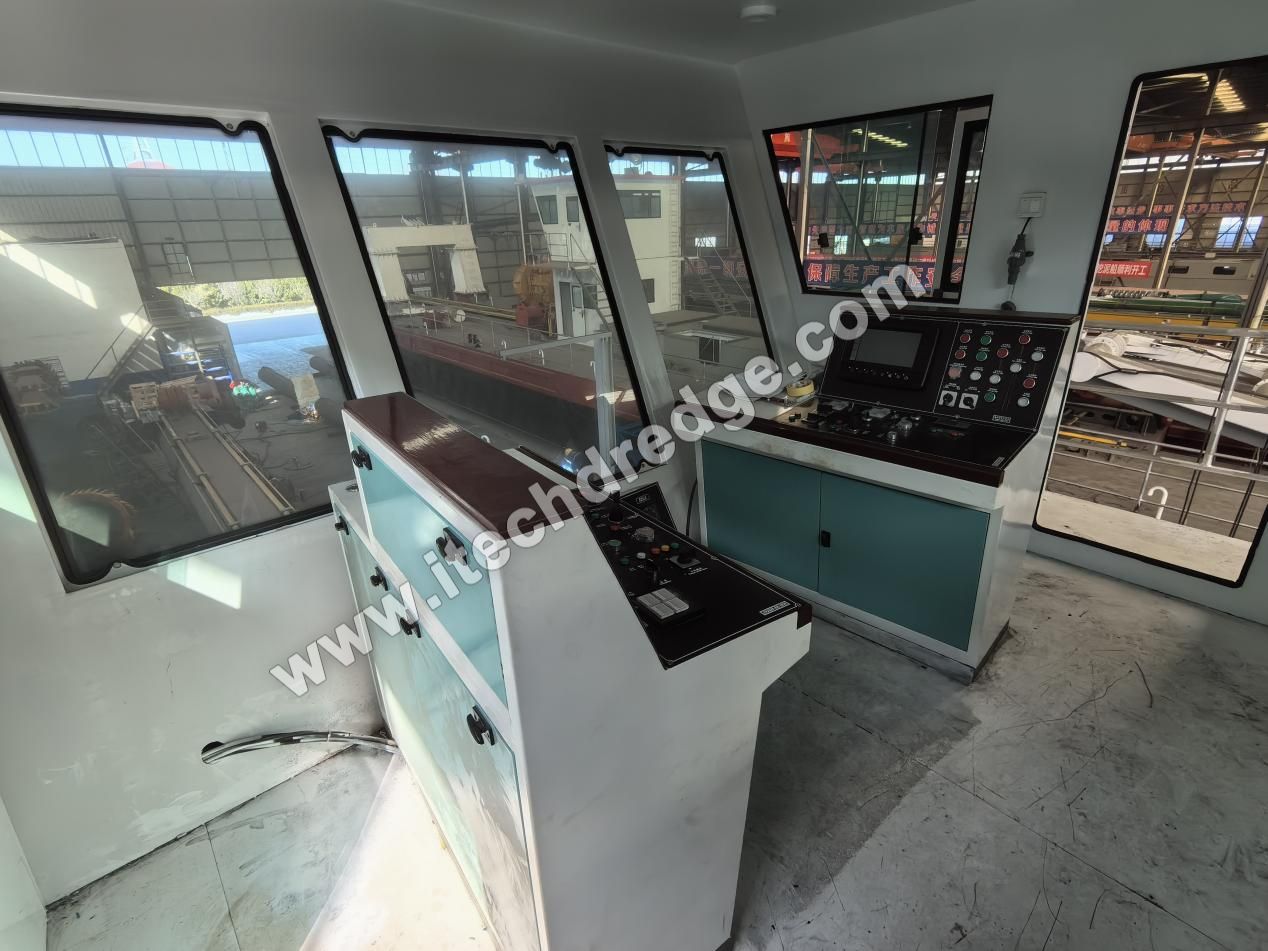

Proper Shutdown Sequence:
Follow the proper shutdown sequence for all equipment. This may include stopping the cutter head, suction pump, and other motors in a specific order. Allow the equipment to cool down before shutting off the power supply completely.
Secure all moving components, such as the cutter head, suction pipe, and spuds, in their parked or stowed positions.
Storage:
Store the dredger in a safe and secure location. If possible, dry - dock the dredger for long - term storage to prevent corrosion and damage from water.
Cover any exposed components to protect them from the elements.
Maintenance After Operation:
Conduct a post - operation inspection and maintenance. Clean the equipment, especially the cutter head, suction pipe, and any other components that came into contact with the slurry. Lubricate all moving parts and make any necessary repairs or adjustments based on the operation.
Operating a cutter suction dredger safely requires a comprehensive approach that includes pre - operation checks, strict adherence to operational safety precautions, and well - defined emergency and post - operation procedures. By following these safety measures, the risk of accidents, injuries, and equipment damage can be significantly reduced, ensuring the successful and safe operation of the cutter suction dredger in various marine engineering projects. Regular training, communication, and a safety - first mindset among all crew members are essential for maintaining a safe working environment on board the dredger.
