In the realm of dredging operations, which are crucial for maintaining waterways, reclaiming land, and various coastal and inland construction projects, the cutter head dredge stands out as a highly versatile and efficient piece of equipment. Dredging, in general, involves the removal of sediments, soil, rocks, and other materials from the bottom of rivers, lakes, harbors, and the ocean floor. The cutter head dredge has revolutionized this process by enabling the excavation of a wide range of materials in diverse environmental conditions.
A cutter head dredge is a type of dredging vessel equipped with a rotating cutter apparatus located at the intake end of the suction pipe. This rotating cutter, known as the cutter head, is designed to break up and loosen materials on the seabed or riverbed, making them easier to be sucked up and transported through a pipeline system. The cutter head dredge can be thought of as a sophisticated underwater excavator that combines the functions of cutting and suction to perform its dredging tasks.

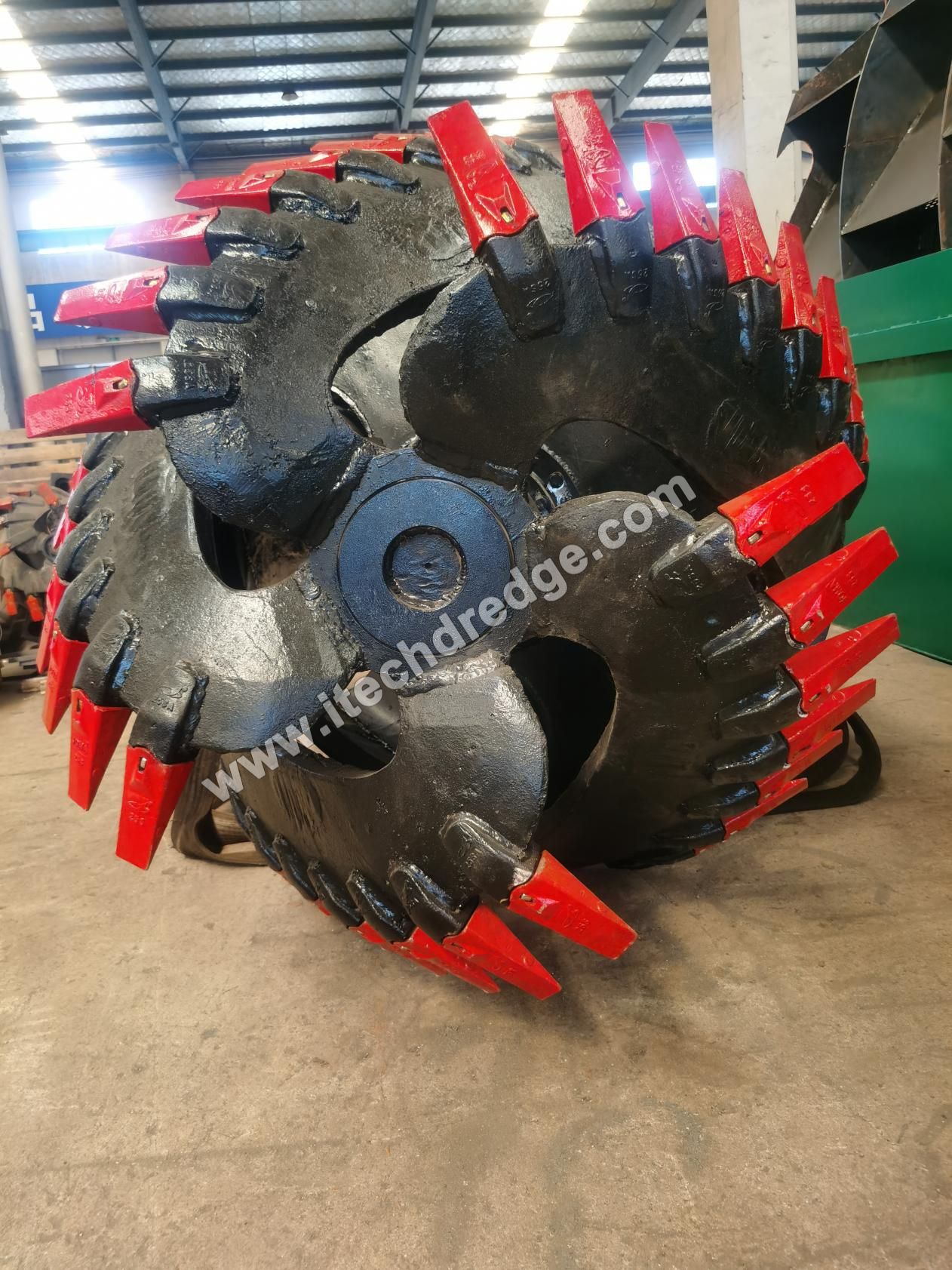

1. cutter head: This is the most distinctive component of the cutter head dredge. It consists of a central hub connected to the dredging machine's hydraulic or mechanical drive system. Attached to the hub are a series of cutter teeth or blades. The number of blades typically ranges from five to six. For different soil types, the design of the cutter head varies. For example, when dealing with hard materials like sandstone, coral, or soft rock, the cutter head has a narrow conical contour to concentrate the cutting force. It is equipped with pick - point - shaped teeth to fragment the hard substances. In the case of cohesive soil such as clay, the cutter head has a relatively large contour and may be equipped with smooth or serrated cutting edges or many small teeth to prevent clogging. For non - cohesive soil like sand and gravel, the cutter head has chisels or cutting edges with a large wearing volume and easily replaceable parts to address the wear issue.

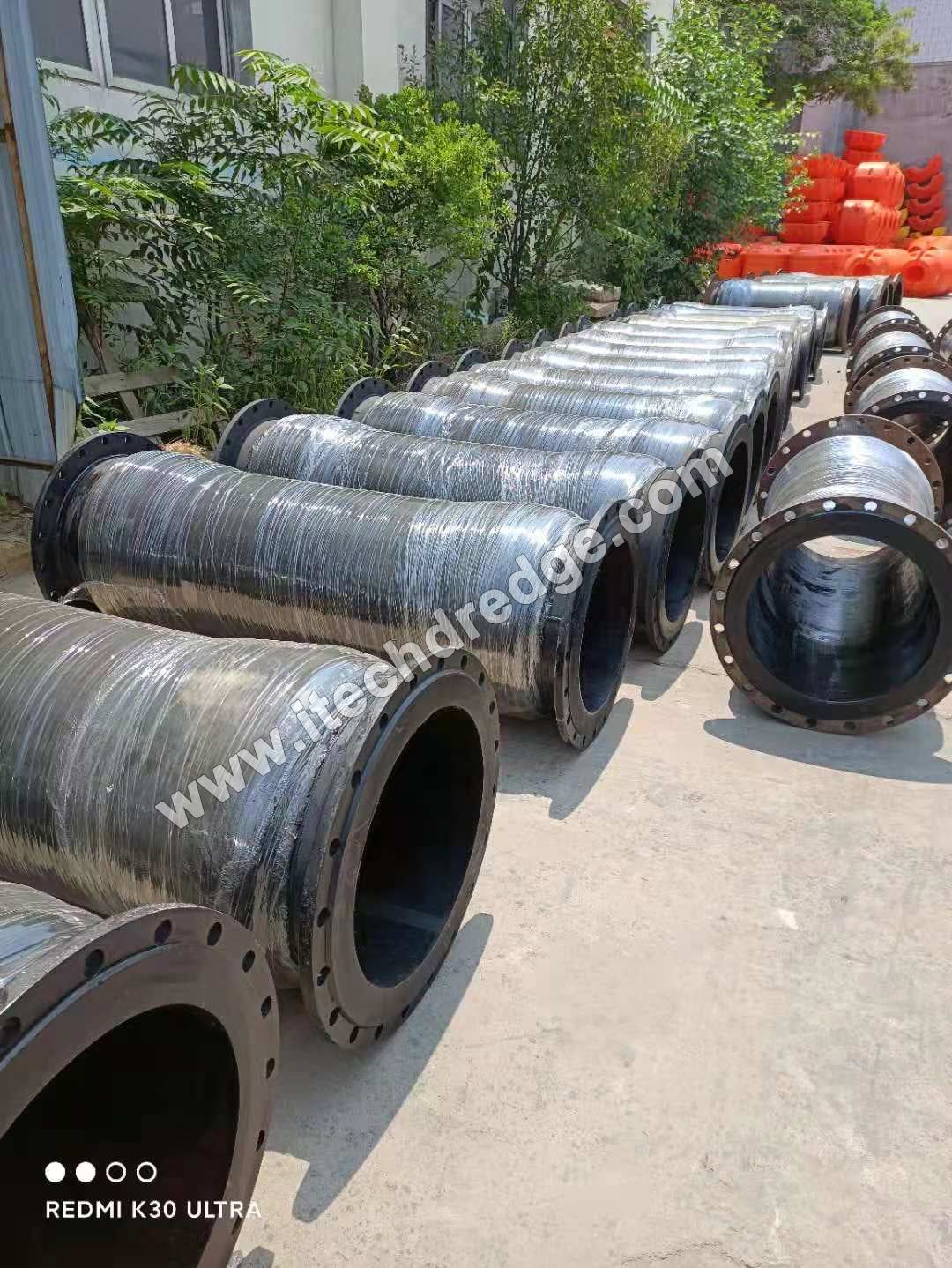

2. Suction Pipe: A large - diameter pipe that is connected to the cutter head. Once the materials are loosened by the cutter head, the suction force created by the dredge's pumps draws the sediment - laden water through this pipe. The suction pipe is designed to efficiently transport the slurry (a mixture of water and dredged materials) from the cutting area to the pumping system.
3. Hydraulic Pumps: High - power pumps that generate the necessary suction to move the slurry through the pipeline. These pumps are a crucial part of the dredge's operation as they determine the rate at which the dredged material can be transported. The power of the hydraulic pumps influences the distance to which the material can be pumped, as well as the volume of material that can be handled per unit time.

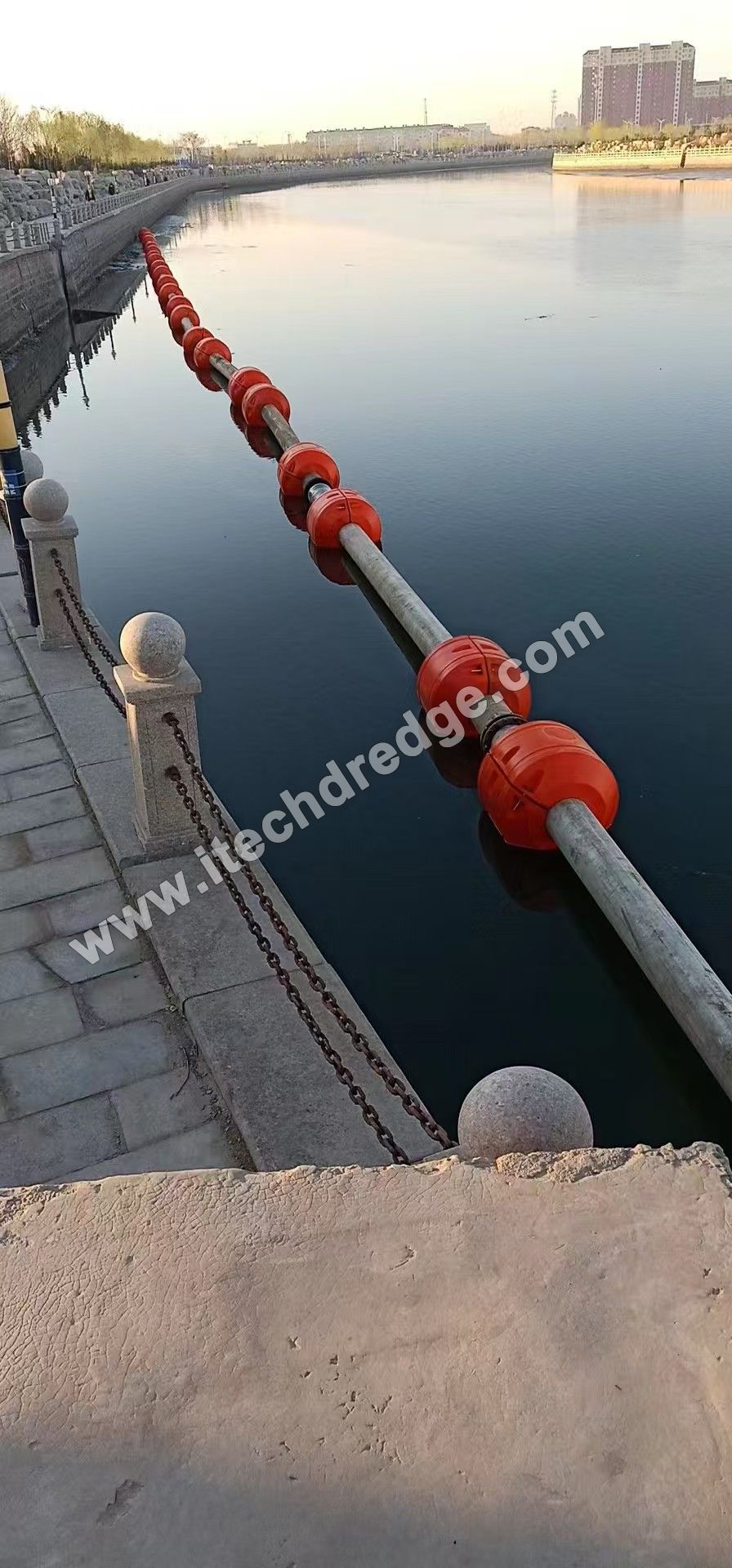

4. Floating Pipeline: In many cases, especially when disposing of the dredged material in open water or over longer distances, a floating pipeline is used. This pipeline is made up of sections of pipe mounted on pontoons. The pontoons keep the pipeline afloat, and anchors are used to hold it in place. The floating pipeline allows for flexibility in the dredging operation, as it can be adjusted to different water depths and distances from the dredge to the disposal site.

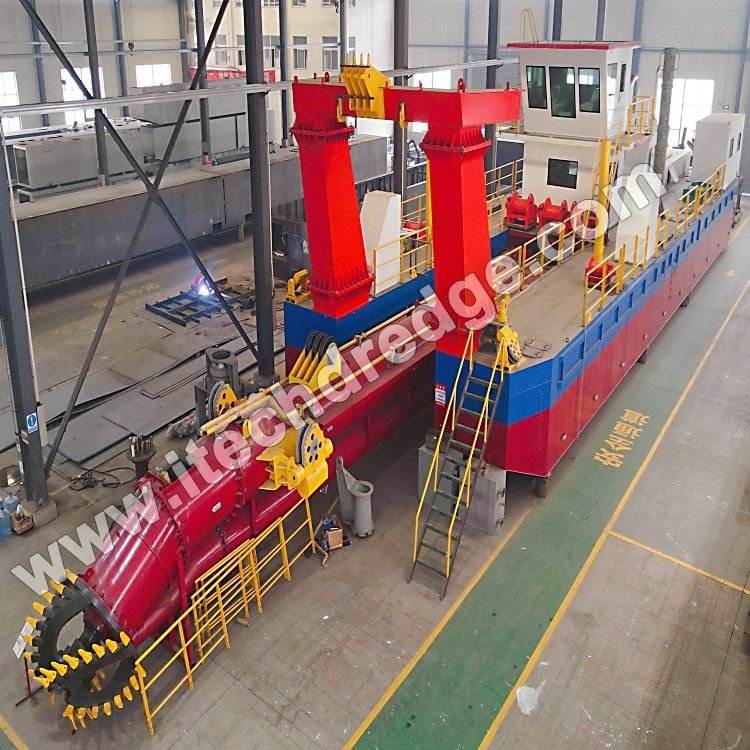

5. Dredge Vessel: The platform that houses all the machinery, including the cutter head drive system, hydraulic pumps, and control systems. The dredge vessel provides stability to the entire operation and is equipped with various features to ensure safe and efficient dredging. Some cutter head dredges are self - propelled, while others may require towboats for movement between dredging locations.
1. Cutting Process: The cutter head rotates at high speeds, powered by an engine or an electric motor. As it rotates, the cutter teeth or blades bite into the sediment or rock on the bottom of the water body. The rotation of the cutter head creates a cutting action that breaks up the materials into smaller pieces. The design of the cutter head and the speed of rotation are adjusted according to the type of material being dredged. For example, harder materials require a higher cutting force and may need the cutter head to rotate at a slower speed to ensure effective fragmentation.
2. Suction and Transportation: Once the materials are loosened and broken into smaller fragments, the hydraulic pumps create a suction force at the intake end of the suction pipe. The slurry, consisting of water and the dredged materials, is then drawn into the suction pipe. The powerful pumps push the slurry through the pipeline system, which may include the floating pipeline and, if necessary, additional shore pipelines for upland disposal. The pipeline transport distances can vary widely. In typical dredging operations, pipeline lengths may range up to about 3 miles, but for commercial land reclamation or fill operations, distances can reach as far as 15 miles. In such cases, multiple booster pumps are installed along the pipeline to maintain the flow of the slurry.
3. Positioning and Movement: cutter head dredges are generally equipped with two stern spuds. During operation, one spud is lowered into the riverbed or seabed to act as a pivot point. The dredge swings from side to side using the spud as a center, while cables attached to anchors on each side control the lateral movement. To move forward, the starboard spud is lowered after a port - side swing, and then the port spud is raised. The dredge is then swung back to the starboard side of the cut centerline. This process is repeated to advance the dredge into the excavation area.

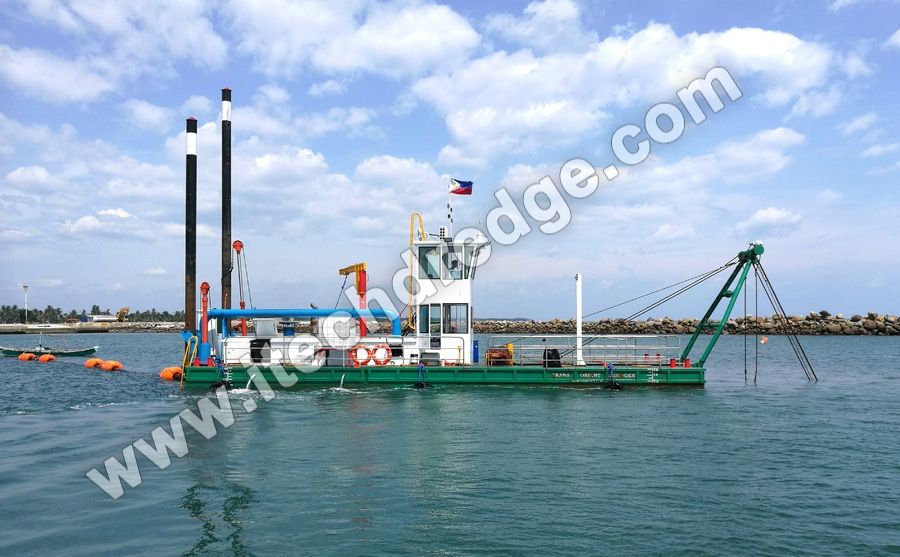

1. Port and Harbor Maintenance: cutter head dredges are widely used to maintain the depth of ports and harbors. Over time, sediment accumulates in these areas due to natural processes such as river inflows and tidal movements. The cutter head dredge can effectively remove this sediment, ensuring that ships can safely navigate in and out of the ports. It can also be used to widen channels or deepen berths to accommodate larger vessels.
2. Land Reclamation: In coastal areas, land reclamation projects are often carried out to create new land for various purposes, such as urban development, industrial parks, or airport construction. cutter head dredges play a vital role in these projects by excavating materials from the seabed and transporting them to the designated reclamation area. The ability to pump the dredged material long distances makes them suitable for creating large - scale land reclamation sites.
3. River and Canal Dredging: Rivers and canals need to be regularly dredged to maintain their navigability and prevent flooding. cutter head dredges can be used to remove sediment that has built up in the riverbeds and canal bottoms. They can also be used to clear channels of debris and vegetation, improving the flow of water.
4. Mining and Quarrying: In some cases, cutter head dredges are used in mining operations, especially for underwater mining of minerals such as sand, gravel, and certain types of ores. The cutter head can break up the hard - to - reach deposits on the seabed or riverbed, and the dredge can then transport the valuable materials to the surface for further processing.

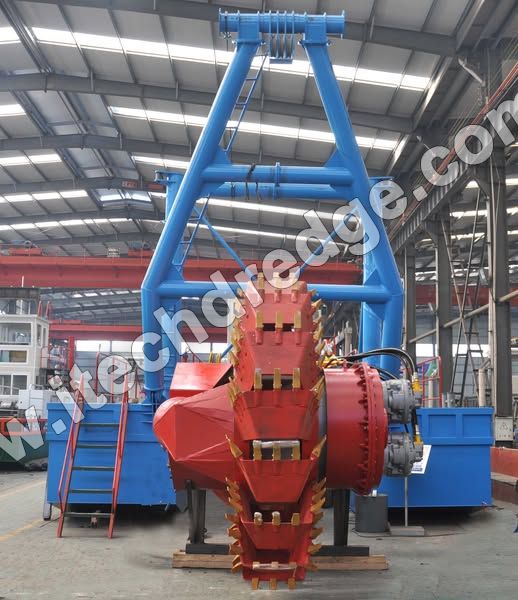

1. Versatility: cutter head dredges can excavate a wide range of materials, from soft silt and clay to hard rock formations. This makes them suitable for various dredging applications in different environmental settings, whether it's a calm inland river or a rough coastal area.
2. High Efficiency: The continuous dredging cycle of the cutter head, combined with the powerful pumping system, allows for high - volume material removal in a relatively short time. The ability to operate continuously without frequent stops for unloading, as in the case of some other dredging methods, significantly increases productivity.
3. Long - Distance Material Transport: They can pump dredged material over long distances, which is a major advantage for projects that require the disposal of materials in specific locations far from the dredging site, such as in land reclamation projects where the material needs to be transported to the new land area.
4. Precision: The controlled operation of the cutter head and the ability to adjust the dredging depth enable precise excavation. This is crucial for projects that require strict adherence to specific depth and contour requirements, such as in the construction of underwater foundations or the creation of artificial reefs.

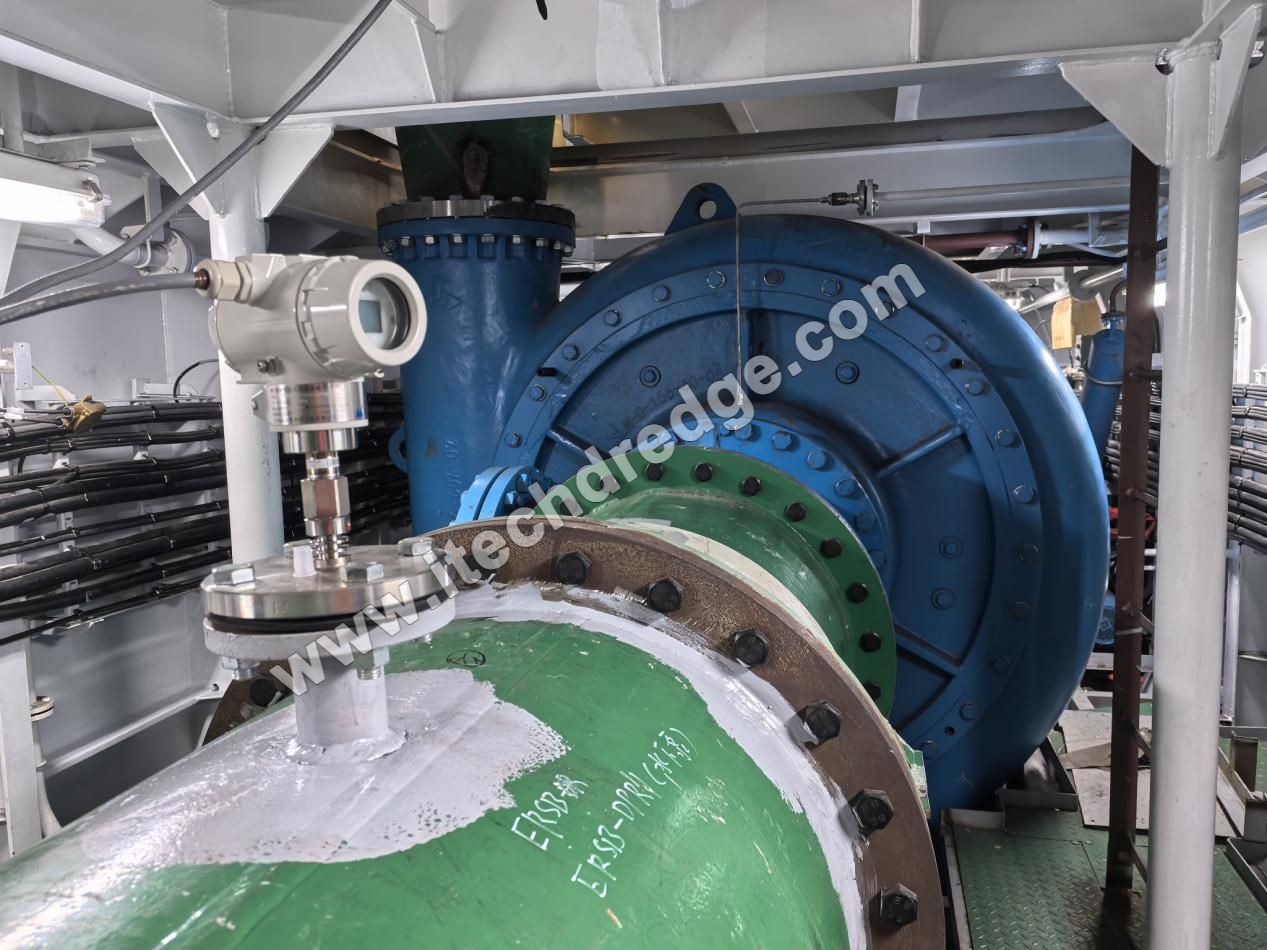

1. Open - Water Challenges: In open - water areas with high waves, the rigid attachment of the dredging ladder (on which the cutter head and suction pipe are mounted) to the dredge can cause operational problems. The cutter head may be forced into the sediment by wave action, creating excessive shock loads on the ladder. Additionally, the safety of personnel and equipment can be at risk in rough open - water conditions.
2. Mobility: Many conventional cutter head dredges are not self - propelled. This means that they require the use of large towboats to move between different dredging locations. The mobilization process can be time - consuming and costly, especially for projects that require the dredge to be moved frequently.
3. Sediment - Specific Issues: When dealing with medium and coarse sand in rivers with rapid currents, cutter head dredges face difficulties. Holding the dredge in position while working upstream can be challenging as the working spud may slip due to scouring effects. When working downstream, the material loosened by the cutter head may not be effectively pulled into the suction intake, leading to the formation of a sand roll or berm in front of the dredge.
4. Navigation Hazards: In small and busy waterways and harbors, the pipeline from the cutter head dredge can pose navigation problems for other vessels. The presence of the pipeline can restrict the movement of boats and ships, requiring careful coordination and sometimes the implementation of temporary traffic management measures.
In conclusion, the cutter head dredge is a highly important and versatile piece of equipment in the dredging industry. Despite its limitations, its advantages in terms of versatility, efficiency, and long - distance material transport make it an essential tool for a wide range of dredging applications, from maintaining waterways to creating new land. As technology continues to advance, improvements in cutter head dredge design are likely to address some of these limitations, further enhancing their performance and utility in the future.
