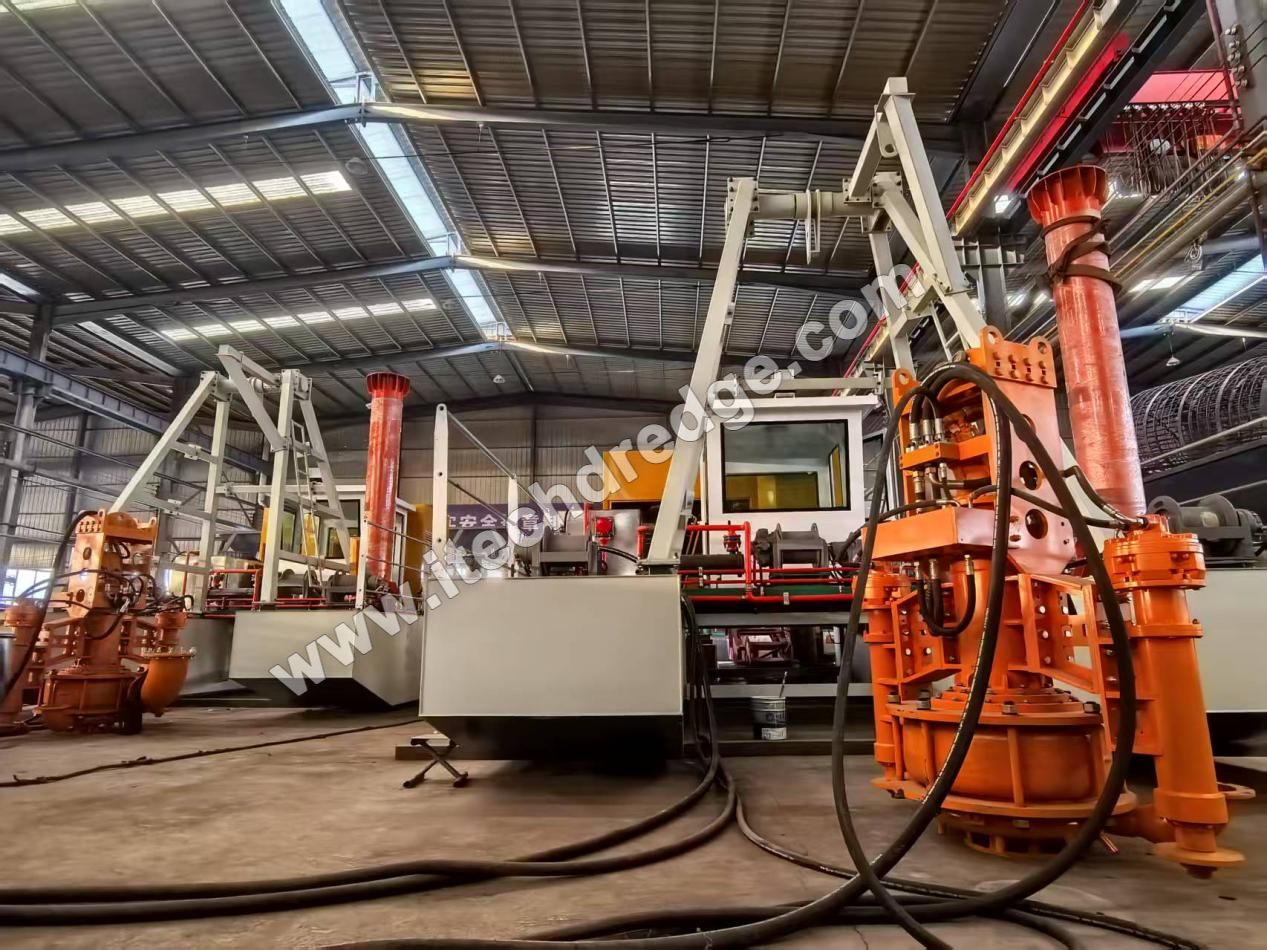

A portable dredge is a versatile, mobile piece of equipment designed to excavate sediment, silt, sand, and other materials from the bottom of water bodies and transport them to a designated location. Unlike large, stationary dredging machines, portable dredges are engineered for flexibility, allowing them to be easily transported and deployed in various aquatic environments—from small lakes and rivers to construction sites and agricultural canals. Their compact design and modular components make them ideal for projects requiring precision, accessibility, and cost-efficiency.

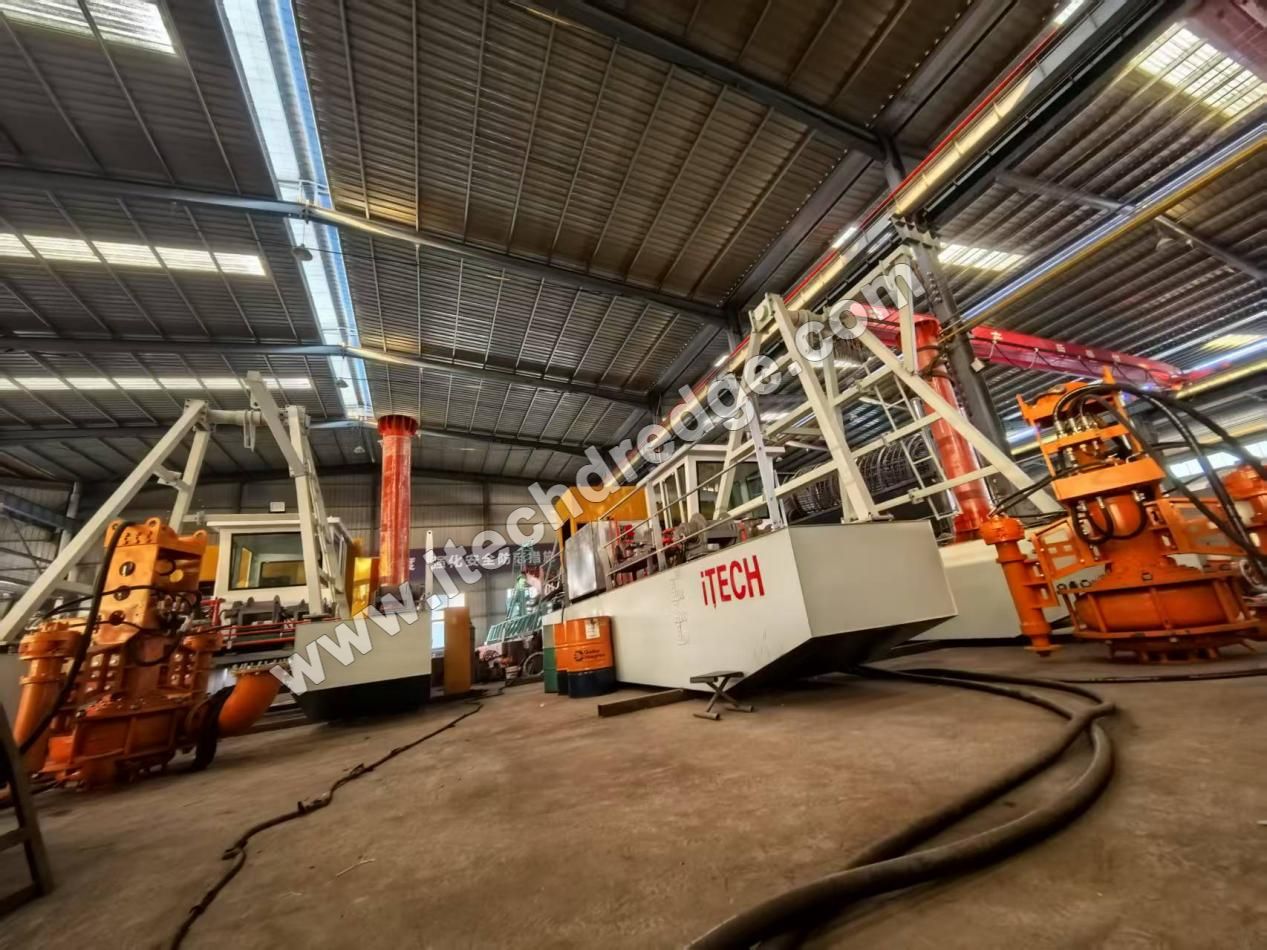

Portable dredges typically consist of several core components that enable their functionality:
1. Hull/Frame: Constructed from lightweight materials like aluminum or high-density polyethylene (HDPE), the hull is designed for buoyancy and durability. Some models are trailer-mounted for land transport.
2. Dredging System:
Suction Dredges: Use pumps (e.g., centrifugal or submersible) to create a vacuum that pulls sediment through a pipeline.
Mechanical Dredges: Employ buckets, grabs, or augers to physically excavate materials.
3. Transport System: Pipelines or conveyors carry the excavated material to disposal sites, often with built-in separation systems to remove water and isolate solids.
4. Power Source: Can be diesel engines, electric motors, or even solar-powered systems for eco-friendly operations.

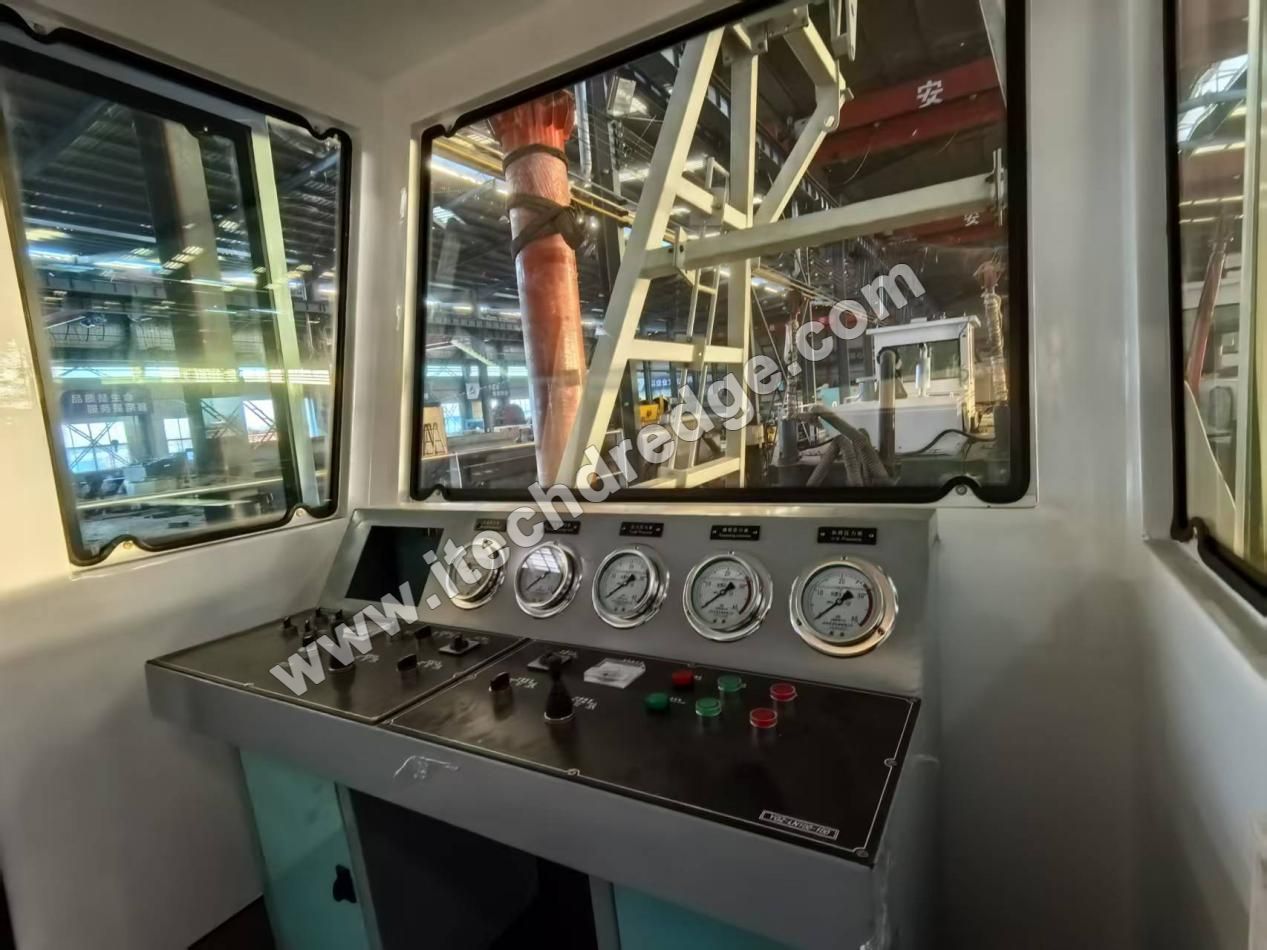

5. Control Panel: Modern models feature intuitive controls for adjusting dredging depth, flow rate, and navigation.
The operational process of a portable dredge varies by type but generally follows these steps:
1. Deployment: The dredge is transported to the site (via truck, boat, or manual labor) and positioned in the water.
2. Excavation: Suction dredges use pump pressure to draw sediment into the pipeline, while mechanical dredges physically scoop materials.
3. Transport and Disposal: The mixture of sediment and water (slurry) is pumped or conveyed to a disposal area, where the water is filtered out, and solids are deposited.
4. Navigation: Some models include propellers or anchors for mobility, allowing precise positioning in tight spaces.

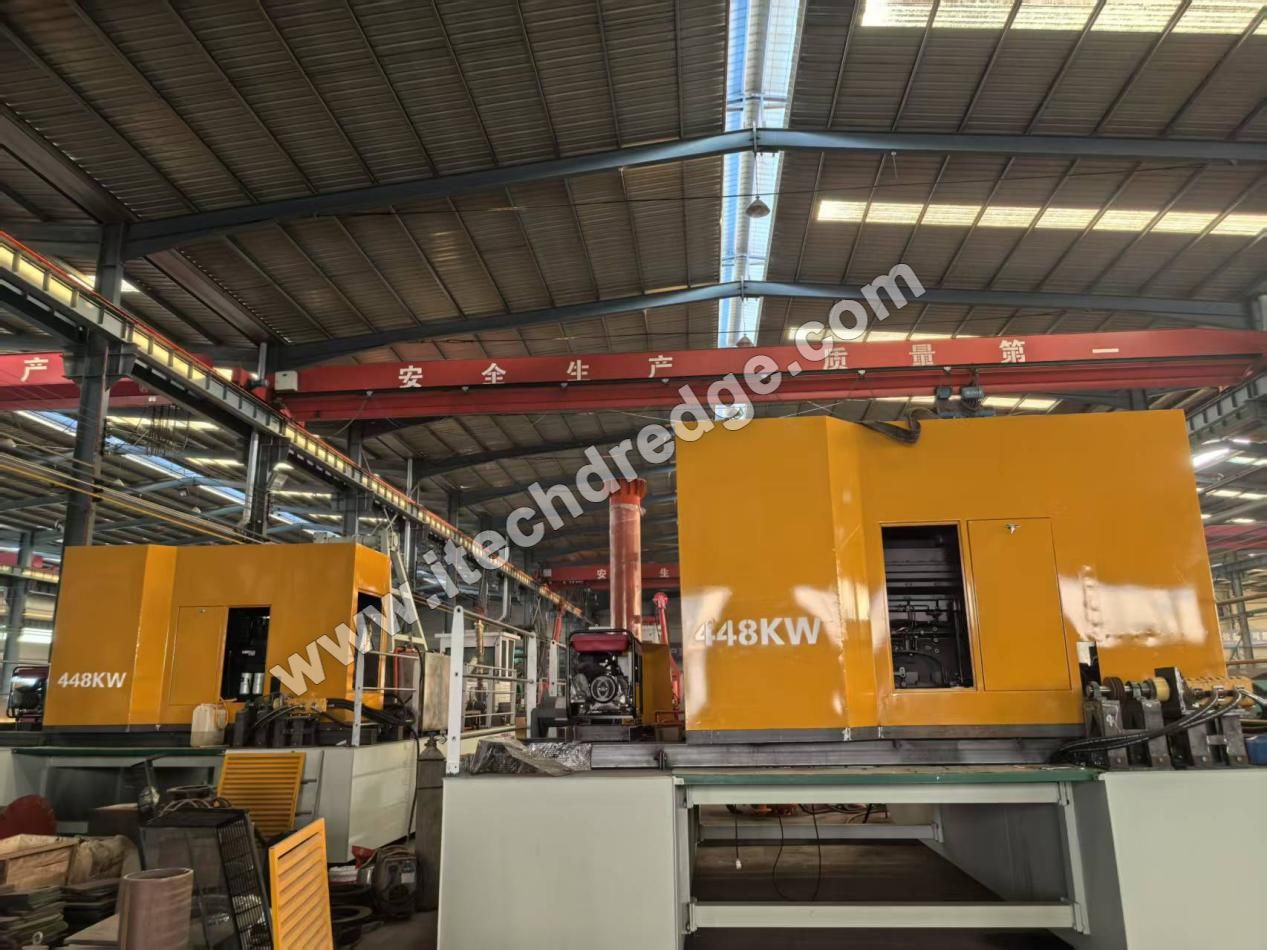

Portable dredges are categorized by their design and function:
Type | Description | Ideal Applications |
Suction Dredges | Use hydraulic pumps to create suction; efficient for fine sediments. | River maintenance, pond cleaning, environmental remediation. |
Bucket Dredges | Mechanical arms with buckets excavate dense materials like rocks or clay. | Construction sites, harbor deepening, mining operations. |
Cutter Suction Dredges | Feature a rotating cutter head to break up hard sediments before suction. | Industrial dredging, large-scale channel excavation. |
Electric-Powered Dredges | Run on electricity, reducing emissions; suitable for urban or eco-sensitive areas. | Urban waterways, residential pond dredging, indoor construction. |
Handheld/Manual Dredges | Small, human-operated tools for minor projects (e.g., garden ponds). | Small-scale landscaping, hobbyist projects, shallow water cleanup. |
Portable dredges serve diverse industries and purposes:
1. Environmental Restoration
1. Cleaning polluted rivers and lakes to remove toxic sediments.
2. Restoring natural water flow in wetlands and flood-prone areas.
2. Construction and Infrastructure
1. Deepening harbors, channels, and marinas for boat navigation.
2. Excavating foundations for bridges or waterfront buildings.
3. Agriculture and Aquaculture
1. Clearing irrigation canals of silt to improve water distribution.
2. Maintaining fish ponds by removing excess sediment that affects water quality.
4. Mining and Resource Extraction
1. Harvesting sand, gravel, or minerals from riverbeds and ocean floors.
5. Urban and Residential Projects
1. Dredging community ponds, golf course water features, or private lakes.

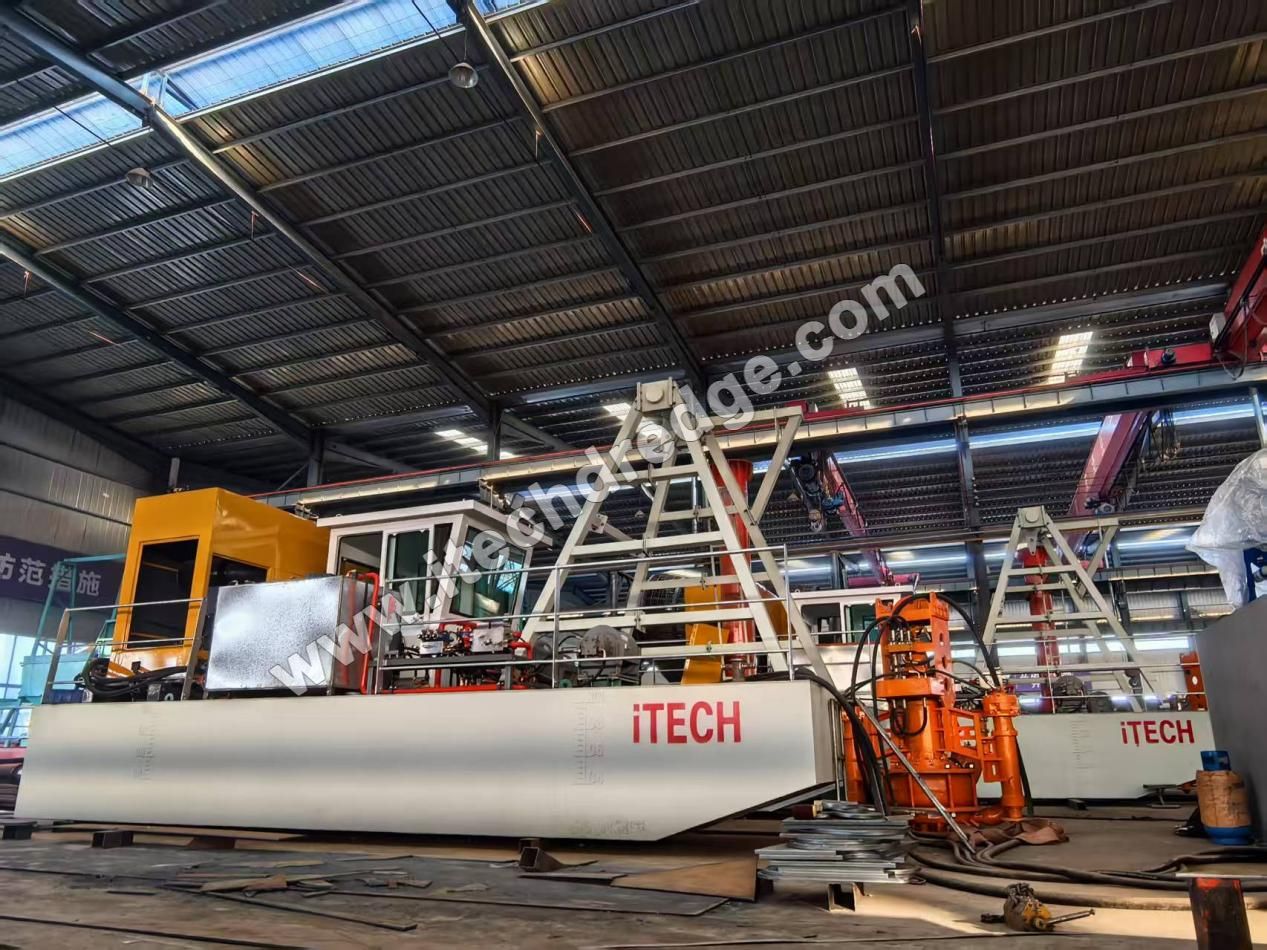

1. Mobility and Accessibility
1. Can be transported via trailer, truck, or even helicopter to remote or hard-to-reach locations.
2. Suitable for shallow waters where large dredges cannot operate.
2. Cost-Effectiveness
1. Lower purchase and maintenance costs compared to industrial-sized dredges.
2. Reduced labor needs due to automated controls.
3. Environmental Friendliness
1. Electric models produce zero emissions, while diesel models meet strict environmental standards.
2. Precise operation minimizes disturbance to aquatic ecosystems.
4. Versatility
1. Adaptable to various sediment types (from silt to gravel) with interchangeable components.
2. Can be scaled for projects of different sizes, from small ponds to large river systems.
Key parameters to consider when evaluating portable dredges:
· Dredging Depth: Ranges from 2 to 30 meters, depending on the model.
· Flow Rate: Suction dredges can pump 50 to 500 cubic meters of slurry per hour.
· Power Output: Electric models typically range from 10 to 100 kW, while diesel engines may reach 500 HP.
· Transport Weight: Ranges from 500 kg (handheld) to 20 tons (trailer-mounted models).
· Material Handling: Capable of processing sediments with up to 40% solid content.

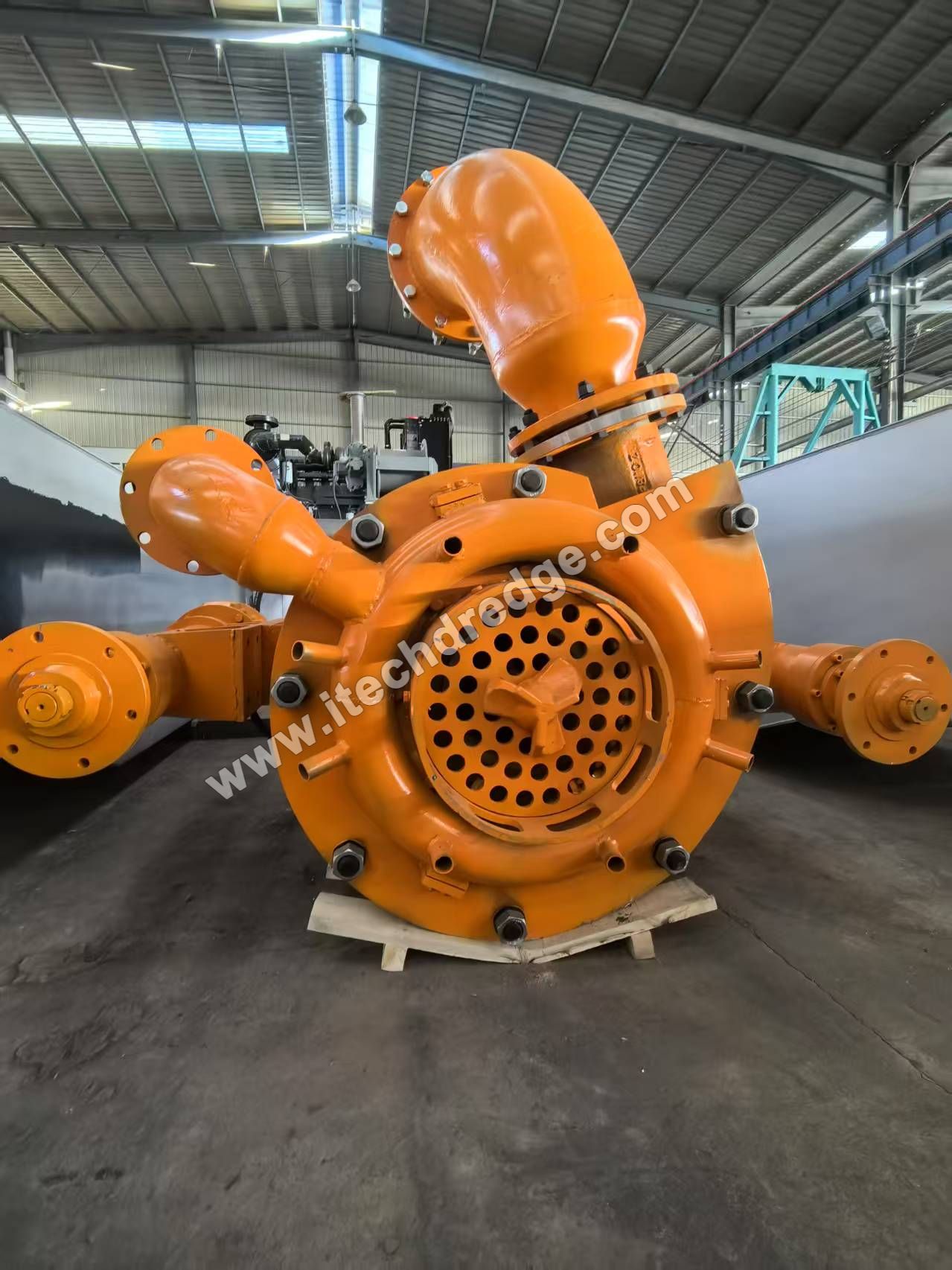

The portable dredge industry is evolving with technological advancements:
1. Smart Dredging: Integration of GPS, IoT sensors, and AI for automated depth control and real-time performance monitoring.
2. Eco-Friendly Designs: Increased adoption of solar-powered dredges and biodegradable hull materials.
3. Modular Systems: Dredges with (detachable) components for easy repair and customization.
4. Remote Operation: Drone-mounted cameras and remote-control systems for hazardous or hard-to-reach areas.
5. Global Demand: Rising investments in water infrastructure and environmental cleanup projects, particularly in Asia and Africa, drive market growth.
1. Assess Project Needs:
· Determine sediment type, water depth, and project scale.
· Prioritize mobility if the site requires frequent relocation.
2. Power Source:
· Electric for low-emission zones; diesel for remote areas without electricity.
3. Maintenance and Support:
· Choose manufacturers with local service centers and readily available parts.
4. Regulatory Compliance:
· Ensure the dredge meets local environmental and safety standards (e.g., EPA regulations in the U.S.).
· Regularly inspect pumps, pipelines, and filters for clogs or wear.
· Flush the system with clean water after each use to prevent sediment buildup.
· Lubricate mechanical components (e.g., hinges, gears) to avoid corrosion.
· Store the dredge in a dry, covered area to protect against UV damage and rust.
Portable dredges bridge the gap between large-scale industrial equipment and small-scale manual labor, offering a flexible solution for water management, environmental restoration, and infrastructure development. Their ability to adapt to diverse projects, combined with ongoing technological innovations, ensures they remain indispensable tools in modern aquatic engineering. Whether clearing a neighborhood pond or revitalizing a polluted river, portable dredges play a vital role in preserving and enhancing water resources worldwide.
