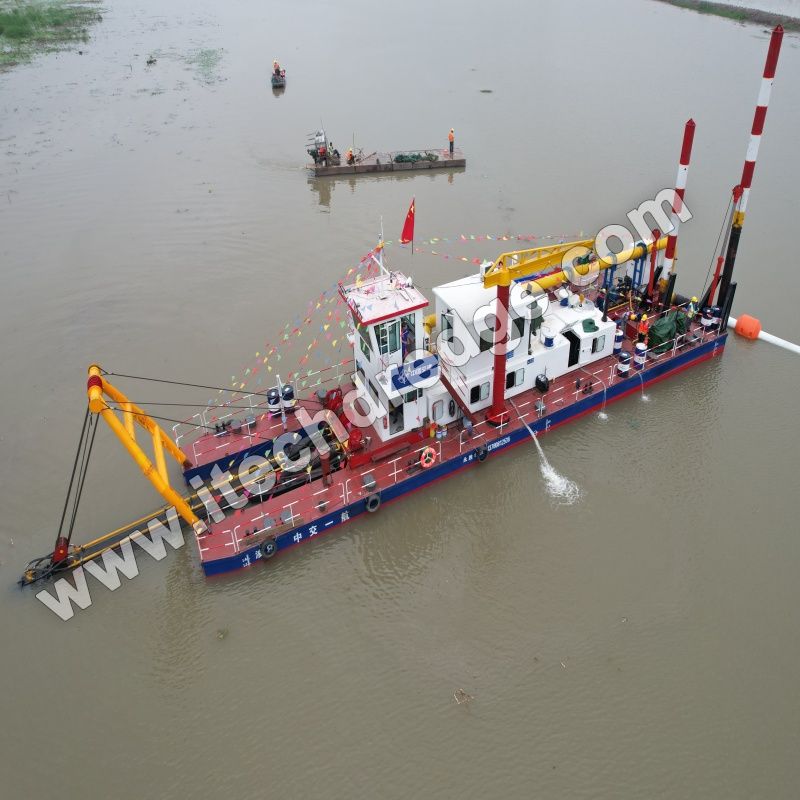

Cutter suction dredgers are highly specialized vessels that play a pivotal role in various dredging projects around the world. These projects range from maintaining navigable waterways in ports and rivers to land reclamation projects for creating new land areas. Understanding the main components of a cutter suction dredger is essential to grasp how these powerful machines function and why they are so effective in their operations. This article will comprehensively explore the key components that make up a cutter suction dredger.
The hull of a cutter suction dredger serves as the foundation and support structure for all other components. It is typically designed to be stable and buoyant, enabling the dredger to operate in different water conditions. Cutter suction dredgers can have either a pontoon - type hull or a ship - shaped hull.
· Pontoon - type Hull: This type of hull is often used for smaller to medium - sized cutter suction dredgers that operate in relatively calm, inland waters such as rivers, canals, and lakes. Pontoon hulls are simple in design, consisting of one or more cylindrical or rectangular pontoons. They provide a stable platform for the dredging equipment, and their shallow draft allows them to work in areas with limited water depth. However, they usually lack self - propulsion capabilities and need to be towed to the work site.

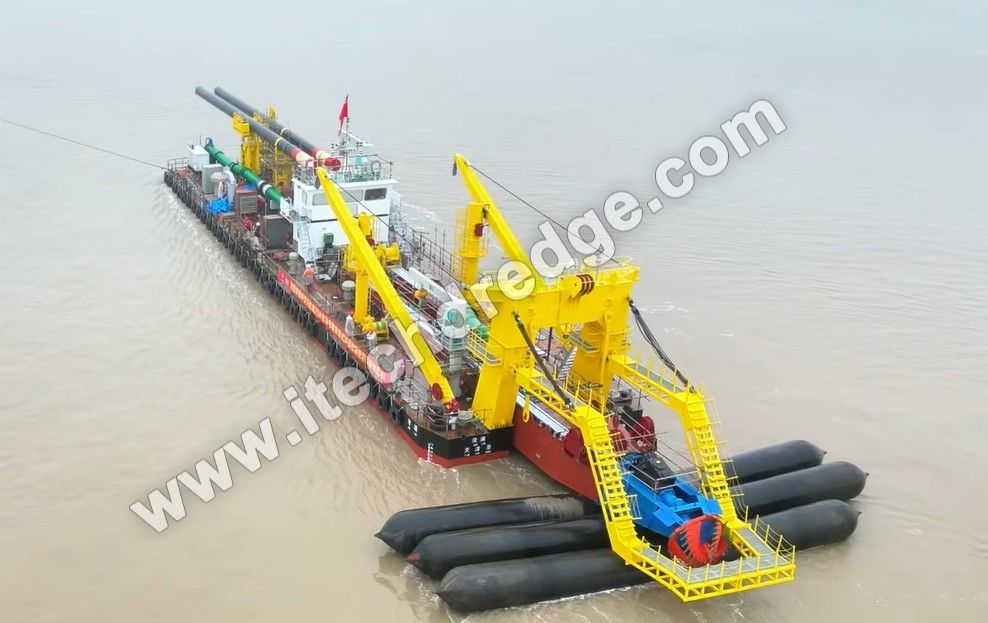

· Ship - shaped Hull: Larger cutter suction dredgers, especially those that are self - propelled and operate in more open and rough waters like the sea, often have a ship - shaped hull. These hulls are designed with a streamlined shape to reduce resistance while moving through the water. They are also built to withstand higher waves and stronger currents. Ship - shaped hulls can be equipped with engines and propellers, enabling the dredger to travel to different dredging locations independently.

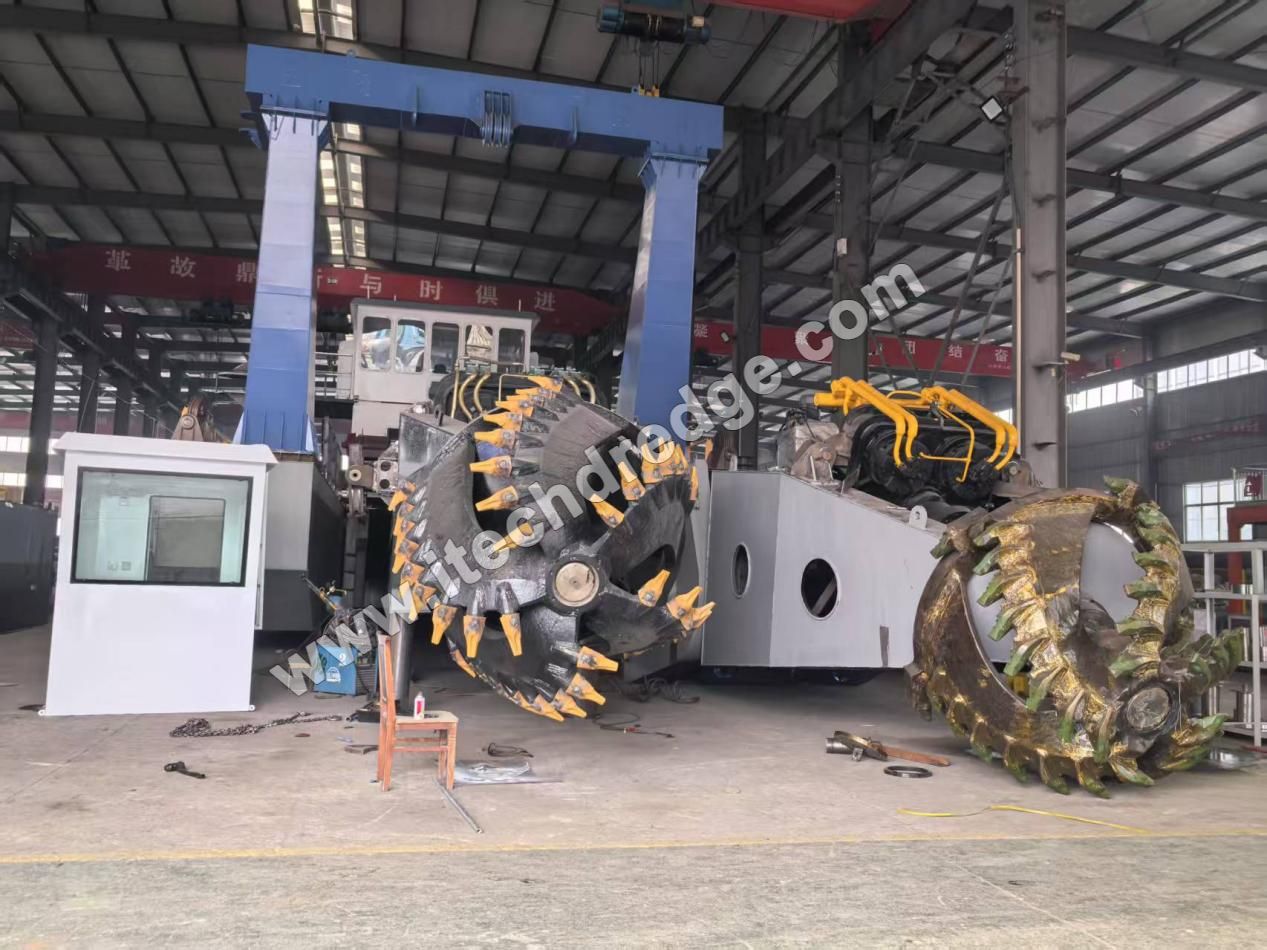

The cutter head is one of the most crucial components of a cutter suction dredger, as it is responsible for breaking up the sediment or soil at the bottom of the water body.
· Design and Function: The cutter head is a mechanical device mounted at the end of the cutter ladder (which will be discussed later). It consists of a rotating drum or wheel with various types of cutting teeth or blades attached to it. The design of the cutter head varies depending on the type of material it needs to dredge. For soft materials like sand and silt, the cutter head may have relatively simple, smooth - edged blades. In contrast, for harder materials such as clay, rock, or compacted soil, the cutter head is equipped with more robust, serrated teeth or carbide - tipped blades. As the cutter head rotates, it cuts, scrapes, and grinds the bottom material, breaking it into smaller pieces. This process not only makes it easier for the suction system to pick up the material but also helps in mixing the solid material with water to form a slurry, which can be more efficiently transported through the pipeline.
· Power and Control: The cutter head is powered by a dedicated drive system, which can be either hydraulic or electric. Hydraulic drives are common in many cutter suction dredgers as they can provide high torque at low speeds, which is ideal for cutting through tough materials. Electric drives, on the other hand, offer more precise control over the speed and torque of the cutter head. The rotation speed of the cutter head can be adjusted according to the type and hardness of the material being dredged. For example, when working on soft sediment, a higher rotation speed may be used to increase the dredging rate, while for hard rock, a lower speed with more torque is applied to ensure effective cutting without overloading the equipment.
The cutter ladder is a long, articulated structure that supports the cutter head and allows it to reach the bottom of the water body at different depths.
· Structure and Movement: It is typically made of steel and is designed to be strong enough to withstand the forces exerted during the dredging process. The cutter ladder is attached to the hull of the dredger at one end and can be raised or lowered using a hydraulic system. This hydraulic system enables the operator to adjust the depth at which the cutter head operates. For example, in shallow - water dredging projects, the cutter ladder may be only partially lowered, while in deeper - water applications, it is extended to its full length. Some cutter ladders are also designed to be able to pivot horizontally, allowing the cutter head to sweep across a wider area at the bottom. This horizontal movement, combined with the vertical adjustment, gives the cutter suction dredger the ability to cover a large area during dredging operations.
· Support for Suction Pipe: In addition to supporting the cutter head, the cutter ladder also houses or supports the suction pipe. The suction pipe is located above the cutter head and is used to draw in the slurry (a mixture of water and the broken - up sediment) created by the cutter head. As the cutter head breaks up the material at the bottom, the suction pipe, which is connected to the mud pump (another key component), sucks up the slurry. The position of the suction pipe relative to the cutter head is carefully designed to ensure efficient pickup of the slurry. For instance, the suction pipe may be positioned in such a way that it captures the material as it is being loosened by the cutter head, minimizing the loss of material back to the bottom.

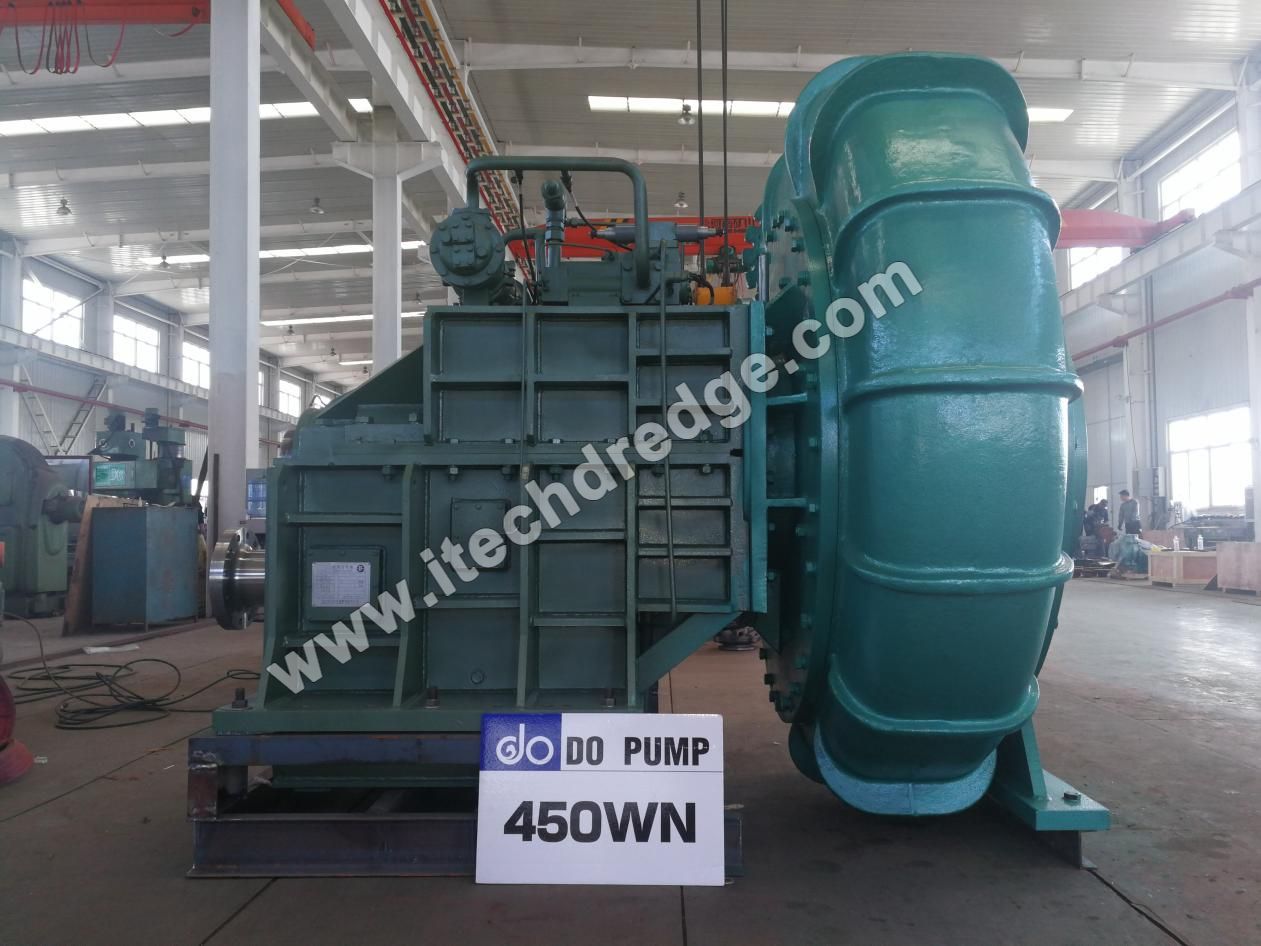

The dredge pump is the "heart" of the cutter suction dredger's material - transfer system. Its primary function is to create the suction force required to draw in the slurry from the cutter head area and then pump it through the pipeline to the discharge location.
· Type and Operation: Centrifugal pumps are commonly used in cutter suction dredgers. A centrifugal mud pump consists of an impeller that rotates inside a casing. When the impeller rotates, it creates a low - pressure area at the inlet of the pump. This low - pressure area allows the slurry to be drawn into the pump through the suction pipe. As the impeller continues to rotate, it imparts kinetic energy to the slurry, accelerating it and forcing it out of the pump through the discharge outlet. The discharge outlet is connected to the pipeline system that transports the slurry to the disposal site or the area where the material is to be used, such as in land reclamation projects.
· Power and Capacity: The power of the mud pump varies depending on the size and capacity of the cutter suction dredger. Larger dredgers that need to pump large volumes of slurry over long distances require more powerful mud pumps. The capacity of the mud pump is also an important factor. It is designed to handle the volume of slurry produced by the cutter head at a given dredging rate. For example, a high - capacity mud pump may be able to handle several thousand cubic meters of slurry per hour, ensuring that the dredging process can be carried out efficiently without the pump becoming a bottleneck in the system.
The pipeline system in a cutter suction dredger is responsible for transporting the slurry from the cutter head to the discharge point. It consists of two main parts: the suction pipeline and the discharge pipeline.

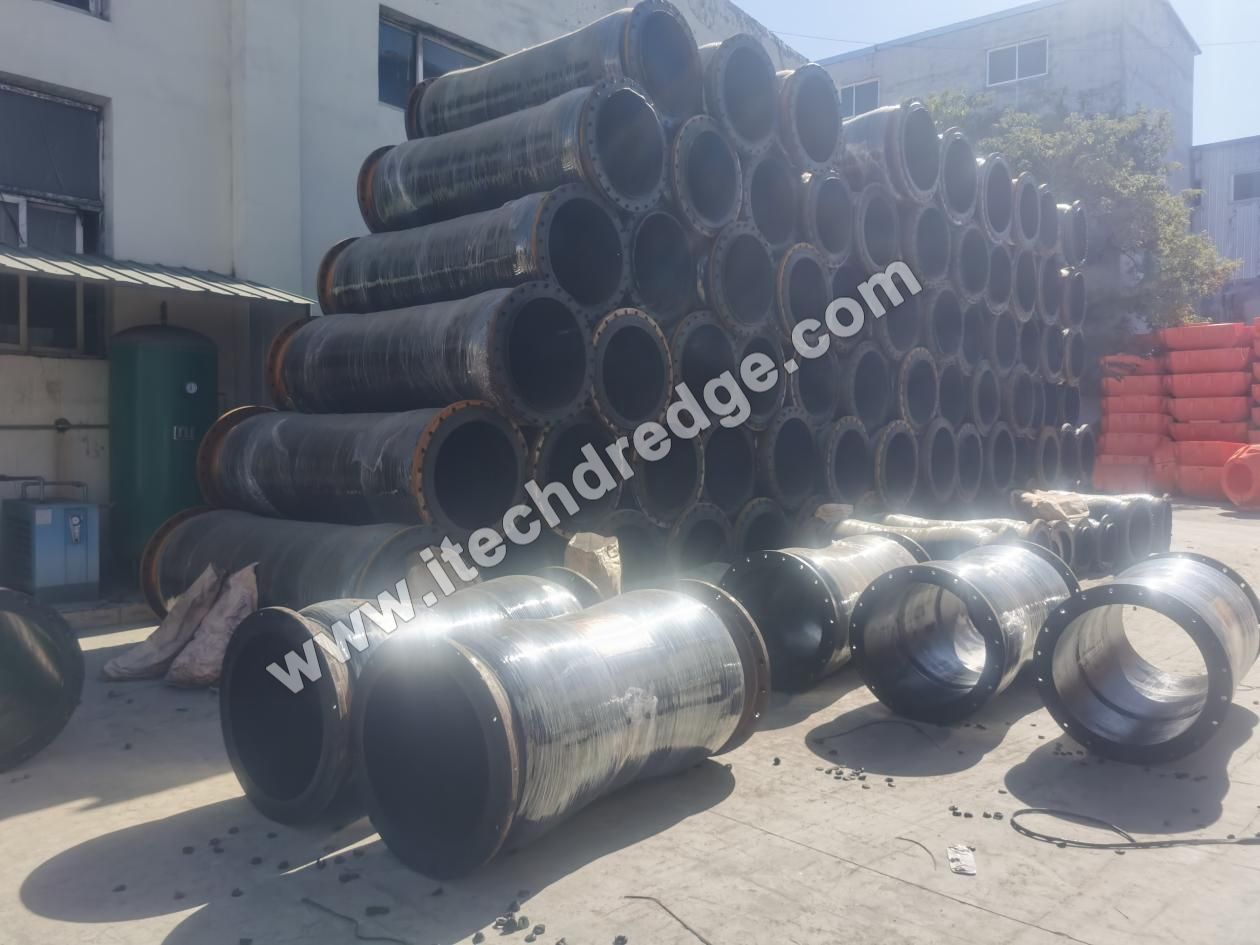

· Suction Pipeline: The suction pipeline starts from the suction head, which is located near the cutter head. It is designed to be flexible enough to follow the movement of the cutter ladder while maintaining a tight seal to prevent air leakage. The suction pipeline is usually made of a combination of rigid and flexible materials. Near the cutter head, a flexible section is used to allow for the movement of the cutter ladder. This flexible section is often made of reinforced rubber or a similar material. As the pipeline moves towards the hull of the dredger, it may transition to a more rigid pipe, such as steel, to provide strength and stability. The diameter of the suction pipeline is carefully selected based on the volume of slurry to be transported and the required suction force. A larger diameter pipeline can reduce the resistance to the flow of slurry, but it also requires more powerful suction to operate effectively.

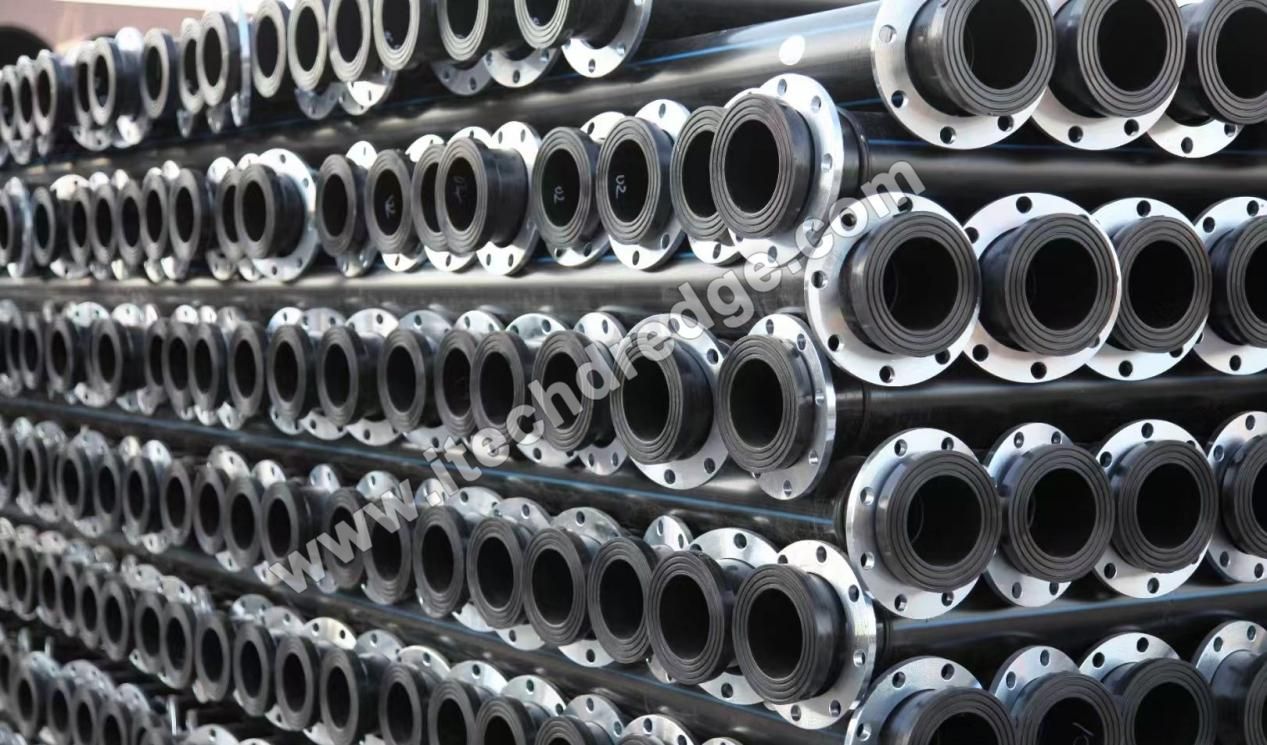

· Discharge Pipeline: The discharge pipeline is responsible for carrying the slurry from the mud pump to the final discharge location. This can be a disposal site, a reclamation area, or a storage facility. The discharge pipeline can be either a floating pipeline (used when the discharge point is in the water, such as when creating an artificial island) or a land - based pipeline. Floating pipelines are made of sections of pipe that are connected together and supported by floats. These floats keep the pipeline buoyant on the water surface. Land - based pipelines are usually made of steel or other durable materials and are laid on the ground or buried underground. The discharge pipeline may also include various components such as bends, valves, and fittings to control the flow of the slurry and direct it to the desired location.
A cutter suction dredger requires a significant amount of power to operate all its components. The power generation and transmission system is responsible for providing this power.
· Power Generation: Cutter suction dredgers can be powered in several ways. Many smaller dredgers use diesel engines as the primary source of power. Diesel engines are compact, easy to install, and can provide the necessary power for the operation of the cutter head, mud pump, and other components. Larger dredgers may use a combination of diesel engines and generators to produce electricity. In some cases, dredgers can also be connected to an external power source, such as a shore - based electrical grid, if available. This can be more cost - effective and environmentally friendly in certain situations.

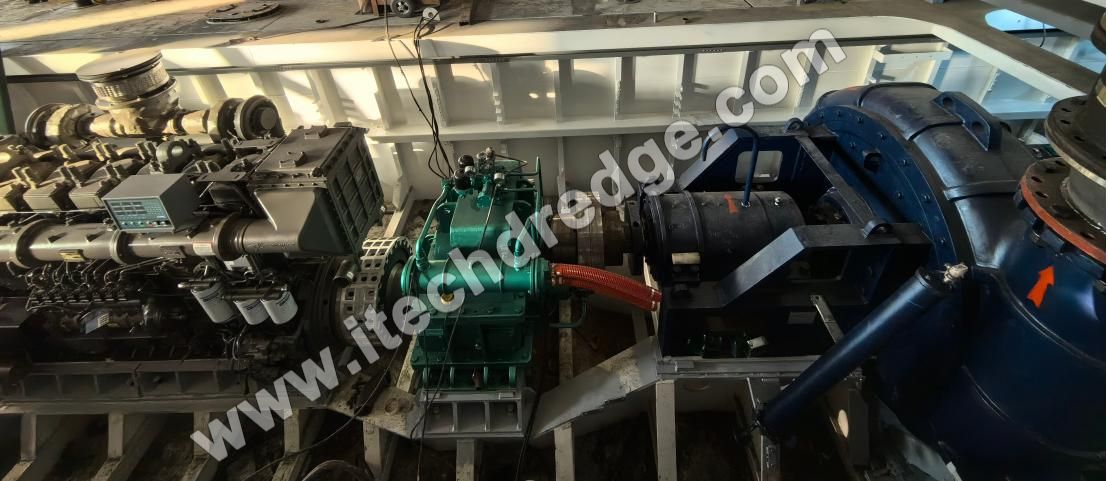

· Power Transmission: Once the power is generated, it needs to be transmitted to the various components of the dredger. For mechanical components like the cutter head and the mud pump, power is often transmitted through a system of shafts, gears, and couplings. In the case of hydraulic components, the power is transmitted through hydraulic fluid, which is pressurized by pumps and then used to drive hydraulic motors and cylinders. Electrically - powered components are connected to the power source through electrical cables and control systems. The power transmission system is designed to ensure that the right amount of power is delivered to each component at the required speed and torque for efficient operation.
Accurate positioning and navigation are crucial for a cutter suction dredger to perform its dredging operations effectively and safely.
· Positioning: Cutter suction dredgers use a variety of methods for positioning. One common method is the use of spud poles. Spud poles are large, vertical poles that are lowered to the bottom of the water body to anchor the dredger in place. The dredger can then pivot around the spud poles as it dredges. Some dredgers also use an anchor system, where multiple anchors are deployed around the dredger to hold it in position. In addition, modern cutter suction dredgers are often equipped with GPS (Global Positioning System) technology. GPS allows the operator to precisely determine the location of the dredger in real - time. This information is used to ensure that the dredger is operating within the designated dredging area and to control the movement of the cutter head and other components.
· Navigation: For self - propelled cutter suction dredgers, navigation systems are essential for moving between different work sites. These systems include radar, which can detect other vessels and obstacles in the vicinity, and navigational charts that provide information about the water depth, underwater topography, and other relevant features. The navigation system also helps the operator to plan the route of the dredger to avoid shallow areas, rocks, and other hazards.
The control and monitoring system of a cutter suction dredger is the brain of the operation, allowing the operator to manage all the components and ensure smooth and efficient dredging.

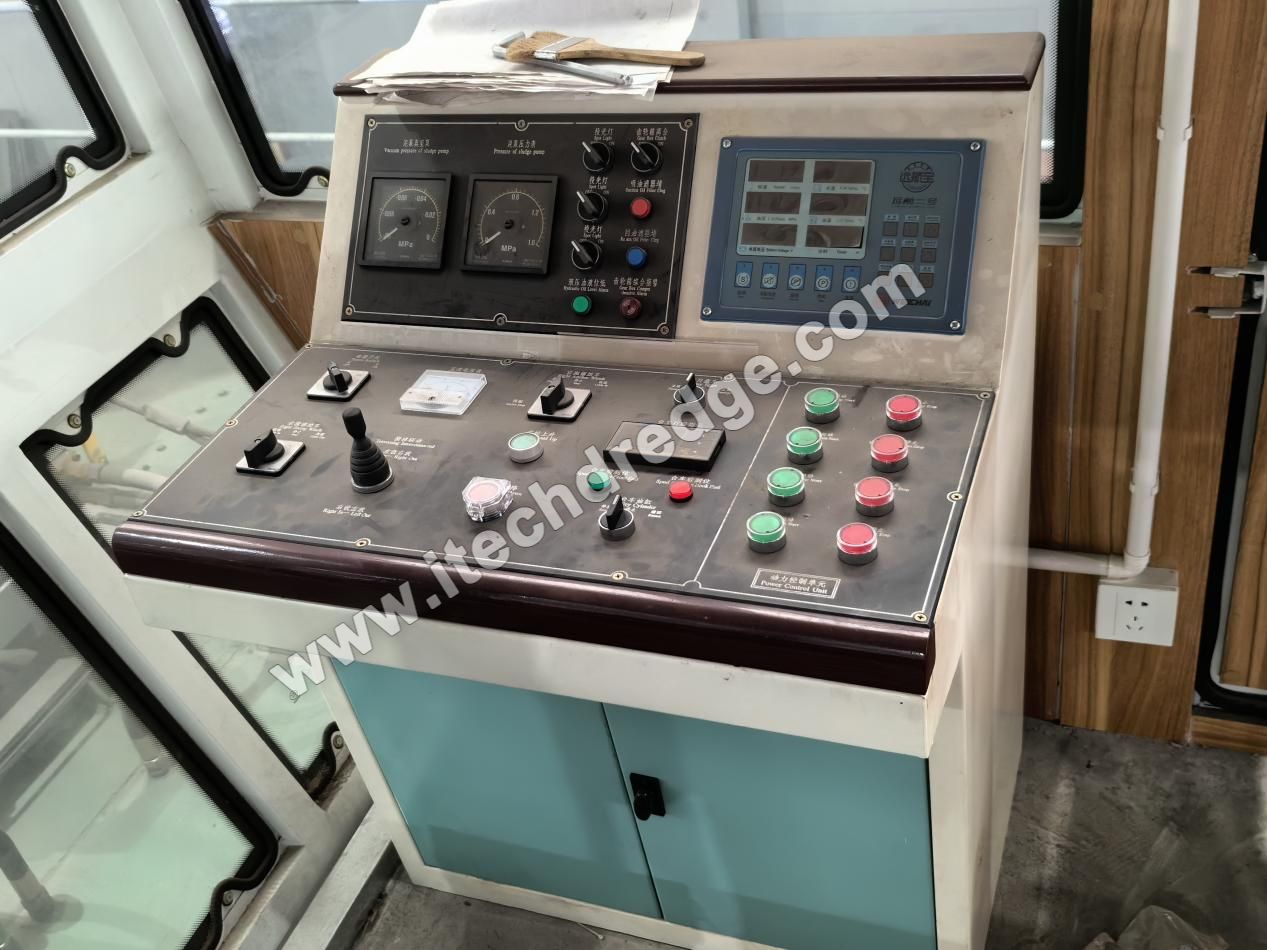

· Control: The control system enables the operator to control the speed and operation of the cutter head, the depth of the cutter ladder, the flow rate of the mud pump, and the movement of the dredger. This can be done through a central control panel located in the operator's cabin. The control panel is equipped with various switches, levers, and digital displays. In modern cutter suction dredgers, computer - based control systems are often used. These systems allow for more precise control and can be programmed to perform specific dredging patterns or sequences. For example, the operator can set the dredger to dredge a certain area to a specific depth and then automatically move to the next area.

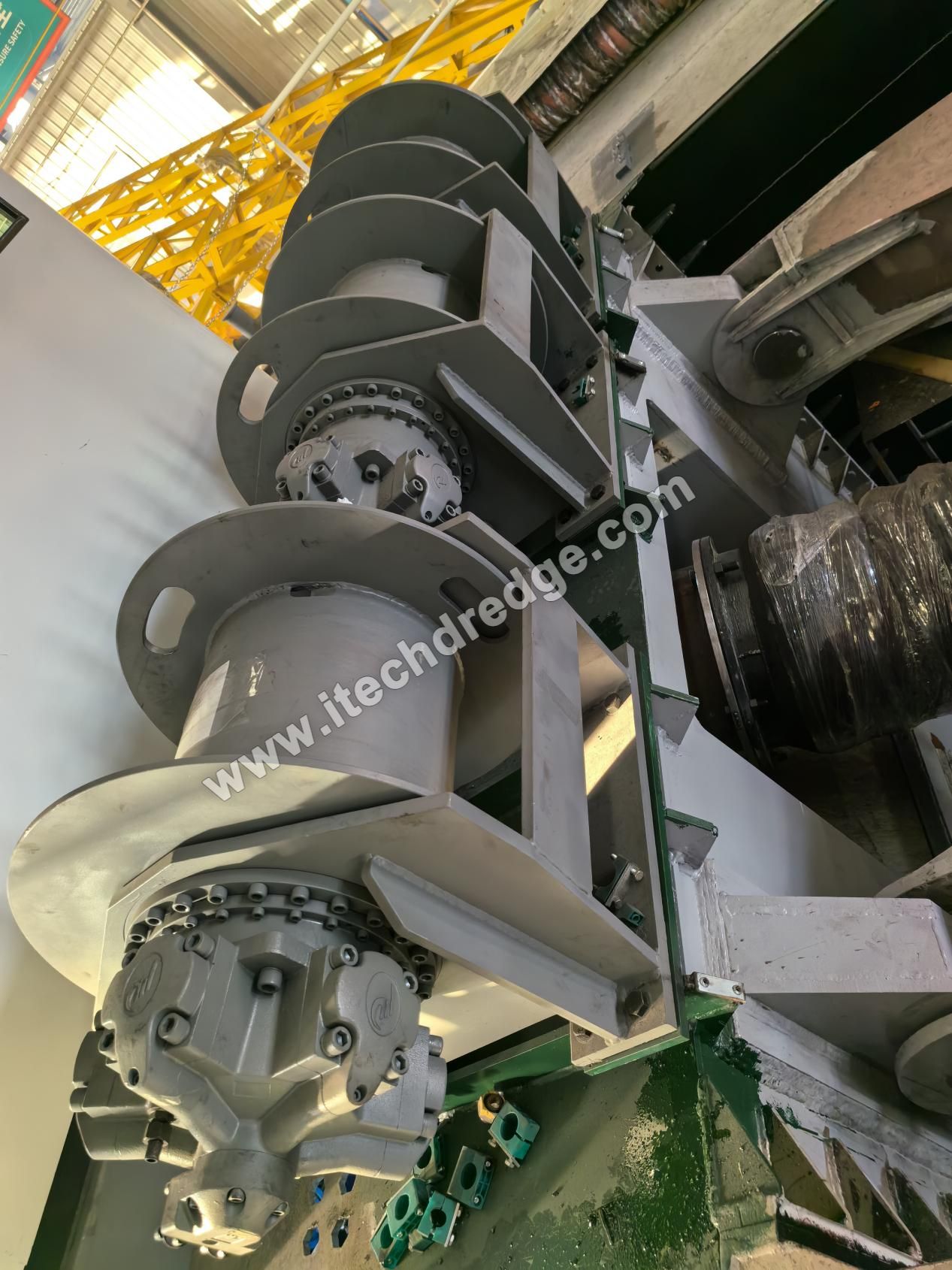

· Monitoring: The monitoring system keeps track of various parameters of the dredger's operation. This includes monitoring the power consumption of different components, the pressure and flow rate in the pipeline system, the temperature of the engines and other machinery, and the position of the dredger. Sensors are installed throughout the dredger to collect this data. The data is then transmitted to the control panel, where it is displayed in real - time. If any parameter goes out of the normal range, the monitoring system can trigger an alarm, allowing the operator to take corrective action immediately. This helps to prevent equipment failure and ensure the safety of the operation.
A cutter suction dredger is a complex and highly engineered vessel, with each of its main components playing a vital role in the overall dredging process. From the hull that provides stability to the cutter head that breaks up the sediment, and from the mud pump that transfers the slurry to the control system that manages the entire operation, all these components work in harmony. Understanding these components is not only important for the operation and maintenance of cutter suction dredgers but also for the planning and execution of successful dredging projects. Whether it's maintaining the navigability of waterways, creating new land for development, or extracting valuable resources from the seabed, cutter suction dredgers continue to be indispensable tools in the world of marine and water - related construction and maintenance.
