Dredging is an essential activity in various industries, including maritime construction, port maintenance, and land reclamation. Two commonly used types of dredgers are the cutter suction dredger and the trailing suction hopper dredger. While both are designed to remove sediment from water bodies, they have distinct characteristics, working mechanisms, and applications. Understanding these differences is crucial for choosing the right dredging equipment for a specific project.

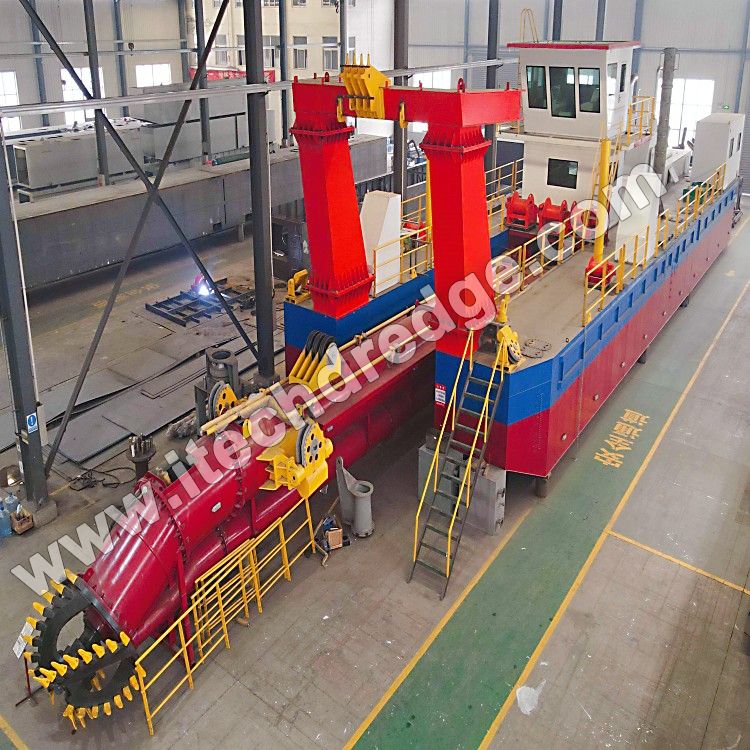

A cutter suction dredger (CSD) is equipped with a rotating cutter head at the end of a suction line. The cutter head, typically shaped like a basket with blades, rotates to cut and loosen the sediment on the seabed or riverbed. Once the material is loosened, it is drawn up into a suction tube by the action of a powerful pump. The slurry (a mixture of sediment and water) is then transported through a pipeline to a designated disposal area or a barge.
The cutter head can be customized with different types of teeth or cutting edges depending on the nature of the sediment. For example, in soft soils like silt and clay, a standard set of blades may be sufficient, while in harder materials such as gravel or rock, more robust and specialized teeth are required. Some cutter suction dredgers also have the option to adjust the rotation speed of the cutter head to optimize the cutting process.

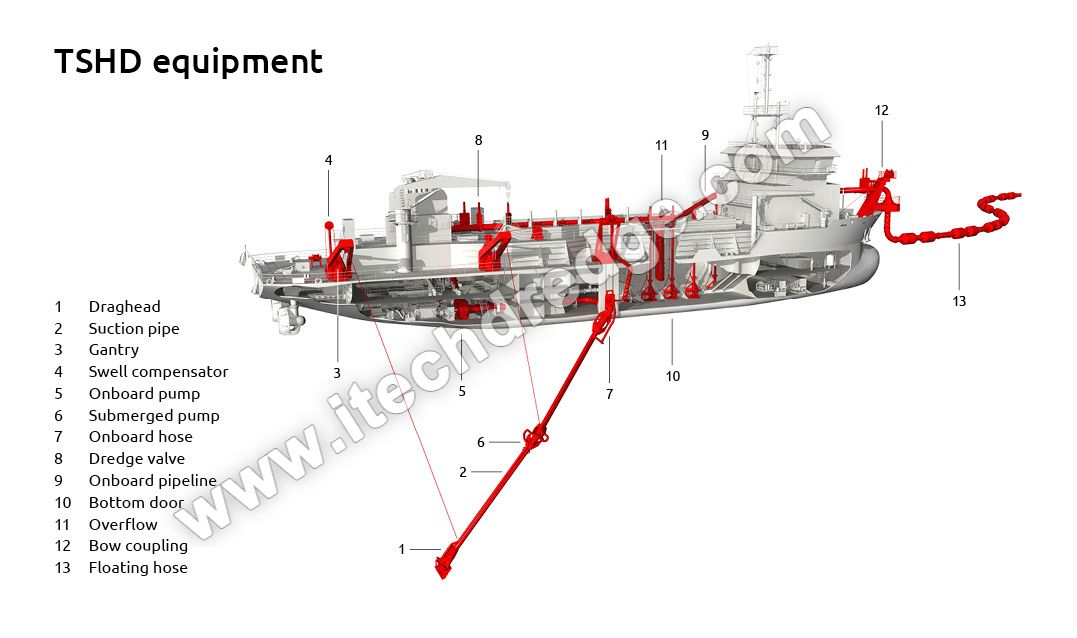

A trailing suction hopper dredger (TSHD) is a self - propelled vessel. It has powerful suction pipes with drag heads attached at the end. When the dredger is in operation, the suction pipes are extended to the seabed, and the drag heads create a suction force that draws the sediment into the hopper (a large storage compartment) on the vessel.

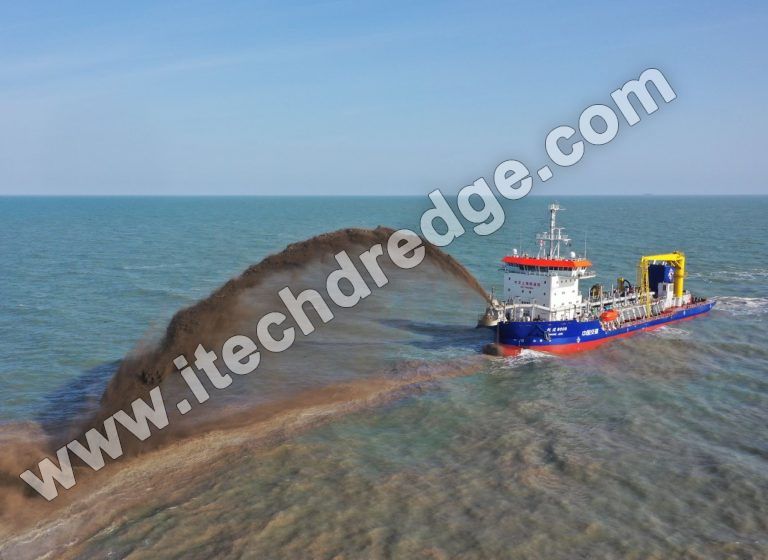

The TSHD moves forward while dredging, continuously sucking up sediment as it goes. Once the hopper is filled, the dredger can either transport the sediment to a disposal site and discharge it through bottom doors or valves or, in some cases, pump the sediment ashore using a pipeline connected to the hopper. Some advanced trailing suction hopper dredgers are also equipped with systems to separate water from the sediment within the hopper, which can increase the efficiency of sediment disposal.

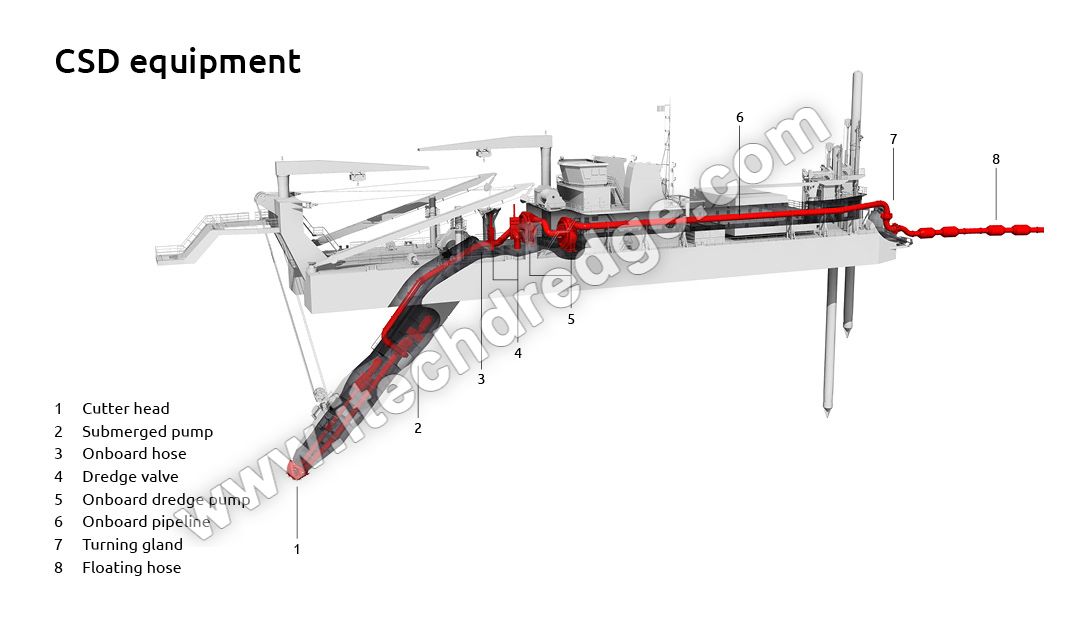

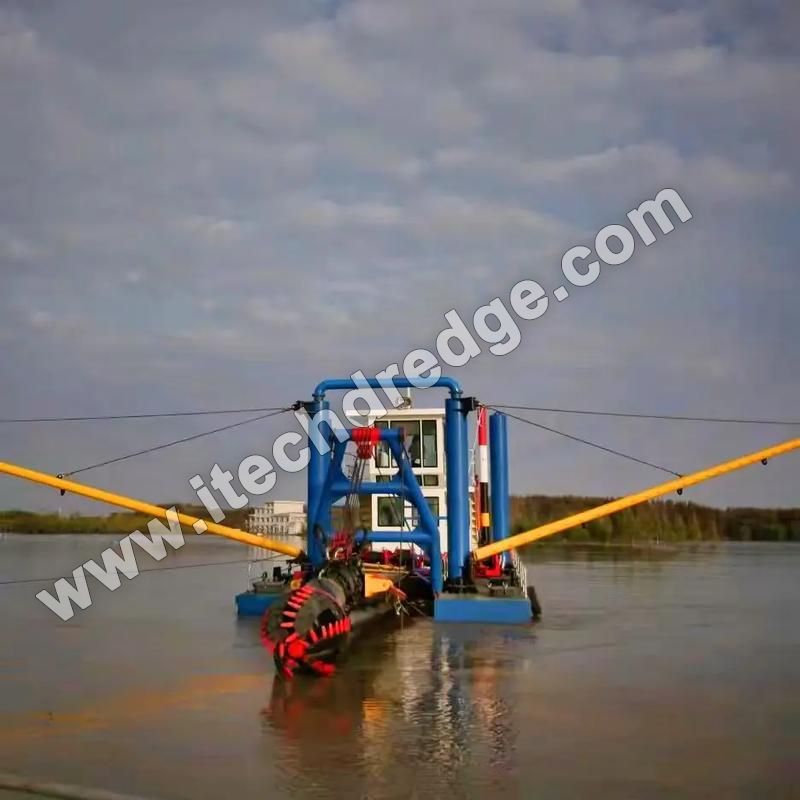

Cutter suction dredgers are often non - self - propelled and are moored in place during operation. They typically have a sturdy pontoon - like hull that provides stability. The suction pipe, along with the cutter head, is attached to a ladder - like structure that can be adjusted in angle to reach different depths.

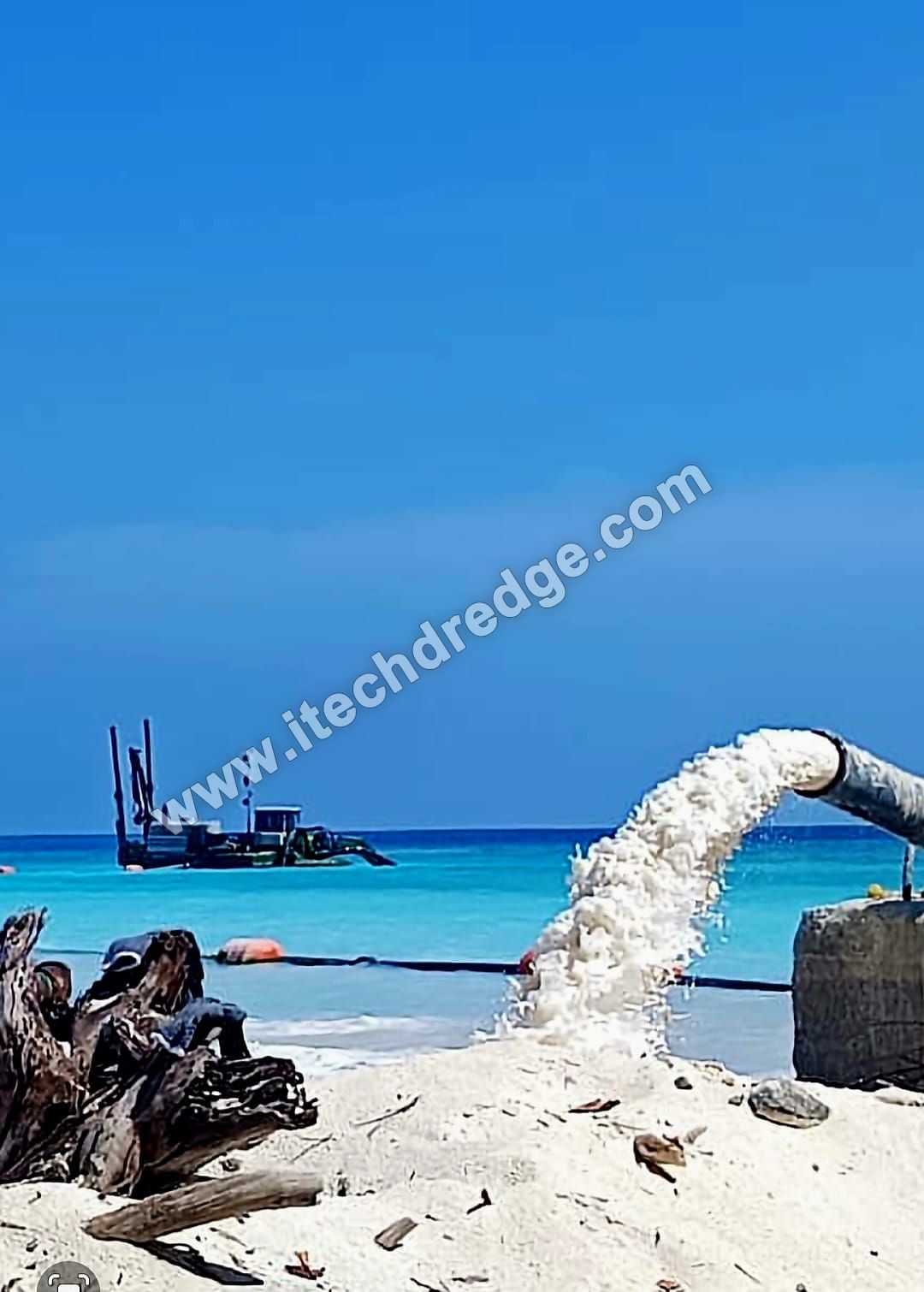

The dredger is usually held in position by a system of anchors and cables. Some larger cutter suction dredgers may also have a spud (a large vertical pole) that can be lowered into the seabed or riverbed to provide additional stability and act as a pivot point for the dredging operation. The pipeline used for transporting the slurry can be either a floating pipeline, which is connected to the dredger and floats on the water surface, or a fixed pipeline that is installed onshore or on a structure near the dredging site.

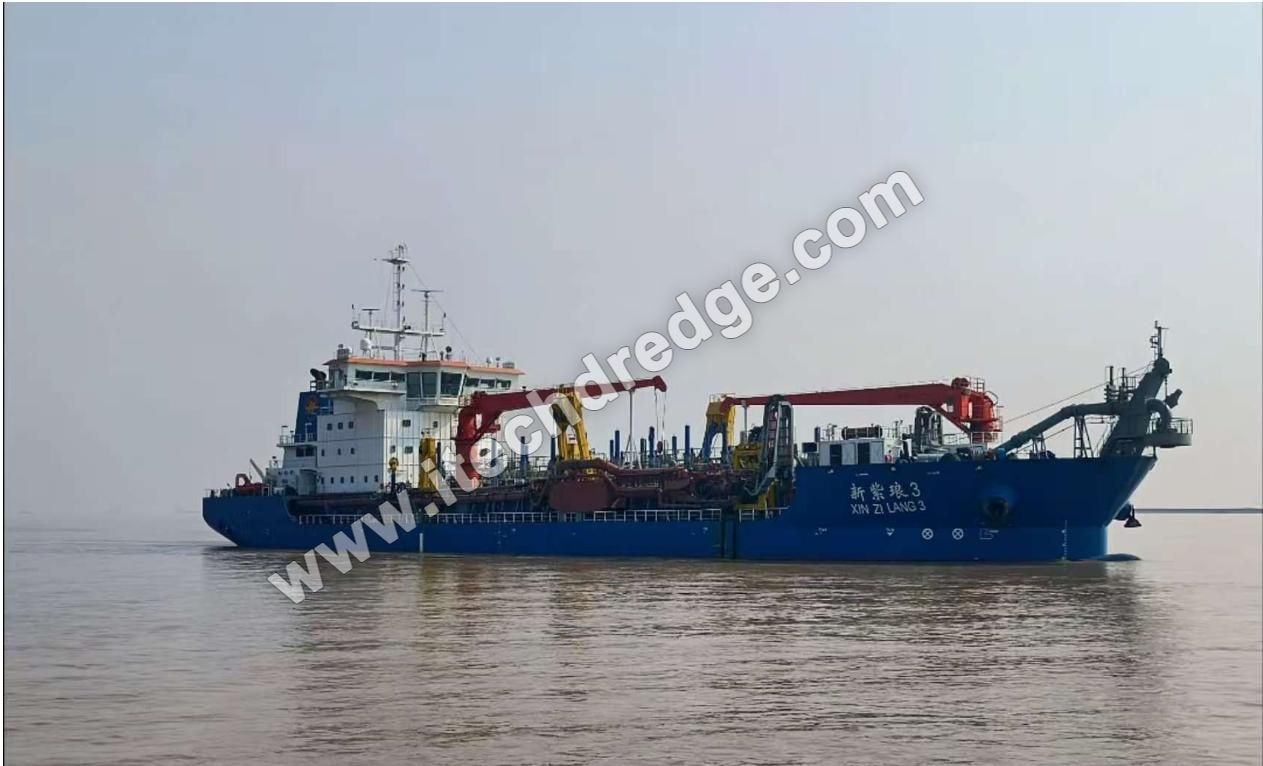

Trailing suction hopper dredgers are self - propelled vessels, which gives them a high degree of mobility. They have a hull designed to carry the large hopper for storing sediment. The hopper is often located in the central part of the vessel, and its capacity can vary significantly depending on the size of the dredger.

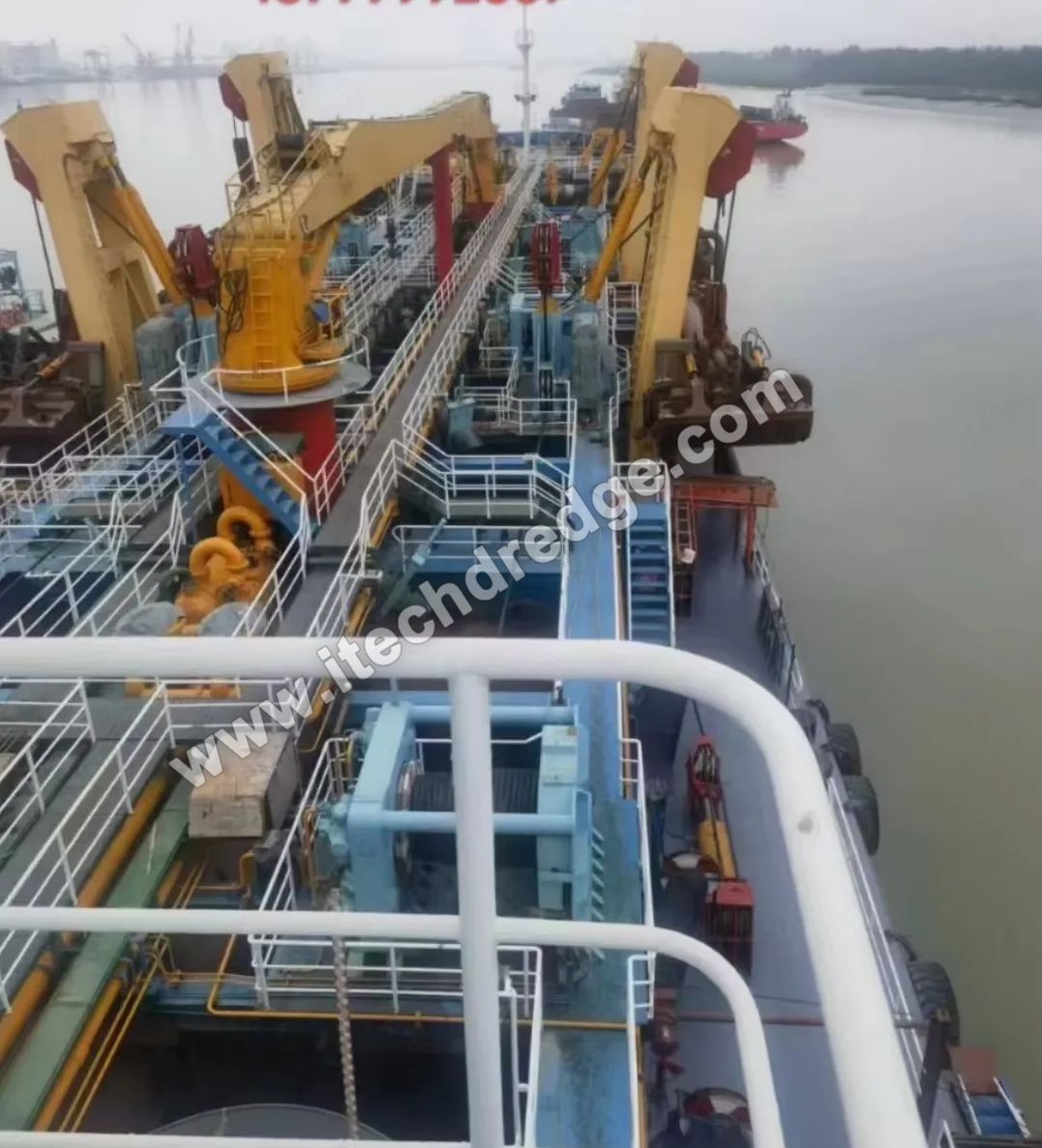

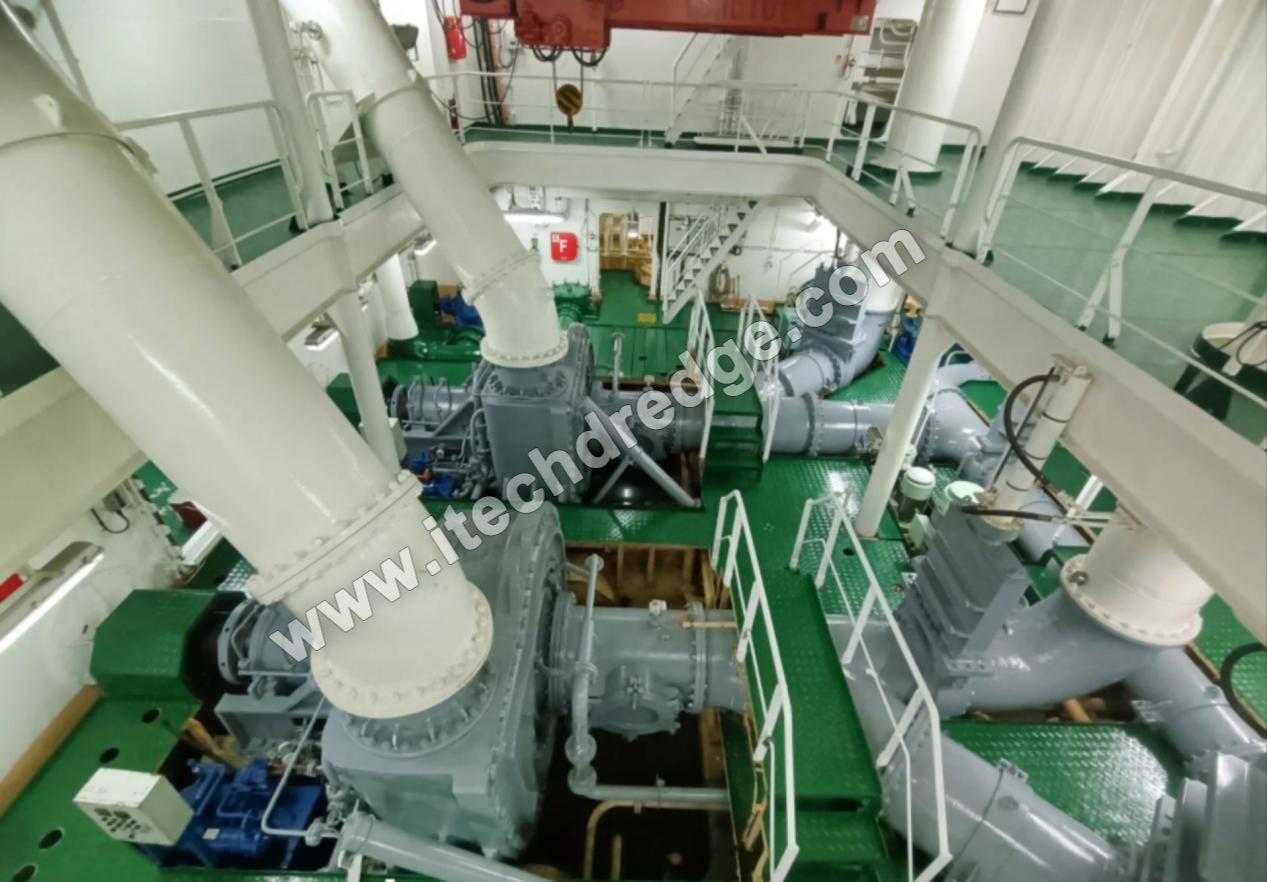

The suction pipes are usually mounted on the sides or the stern of the vessel. The drag heads at the end of the suction pipes are designed to be dragged along the seabed to pick up sediment. TSHDs also have propulsion systems, such as engines and propellers, that allow them to move to different dredging locations, navigate through waterways, and maintain a steady speed during the dredging process.
Cutter suction dredgers are generally more suitable for dredging in relatively calm waters, such as inland rivers, lakes, and protected coastal areas. Their mobility is somewhat limited as they need to be moored in place during operation. However, they can be highly accurate in dredging specific areas.
The reach of a cutter suction dredger is determined by the length of its suction pipe and the ability to move the dredger within the area defined by its mooring system. They are often used for projects where precise control over the dredging depth and area is required, such as creating or maintaining channels with specific dimensions in a harbor. The maximum dredging depth of a cutter suction dredger is typically in the range of 25 - 30 meters, although some specialized models can reach slightly deeper.
Trailing suction hopper dredgers are highly mobile and can operate in a wide range of water conditions, including open seas and large rivers. Their self - propelled nature allows them to quickly move between different dredging sites, making them ideal for large - scale projects that require covering extensive areas.
They can work in deeper waters compared to cutter suction dredgers, with some models capable of dredging depths exceeding 35 meters. TSHDs are commonly used for dredging large shipping channels, where their ability to move efficiently along the length of the channel while continuously dredging is a significant advantage. They can also be used for offshore projects, such as creating artificial islands or maintaining shipping lanes in open - sea ports.

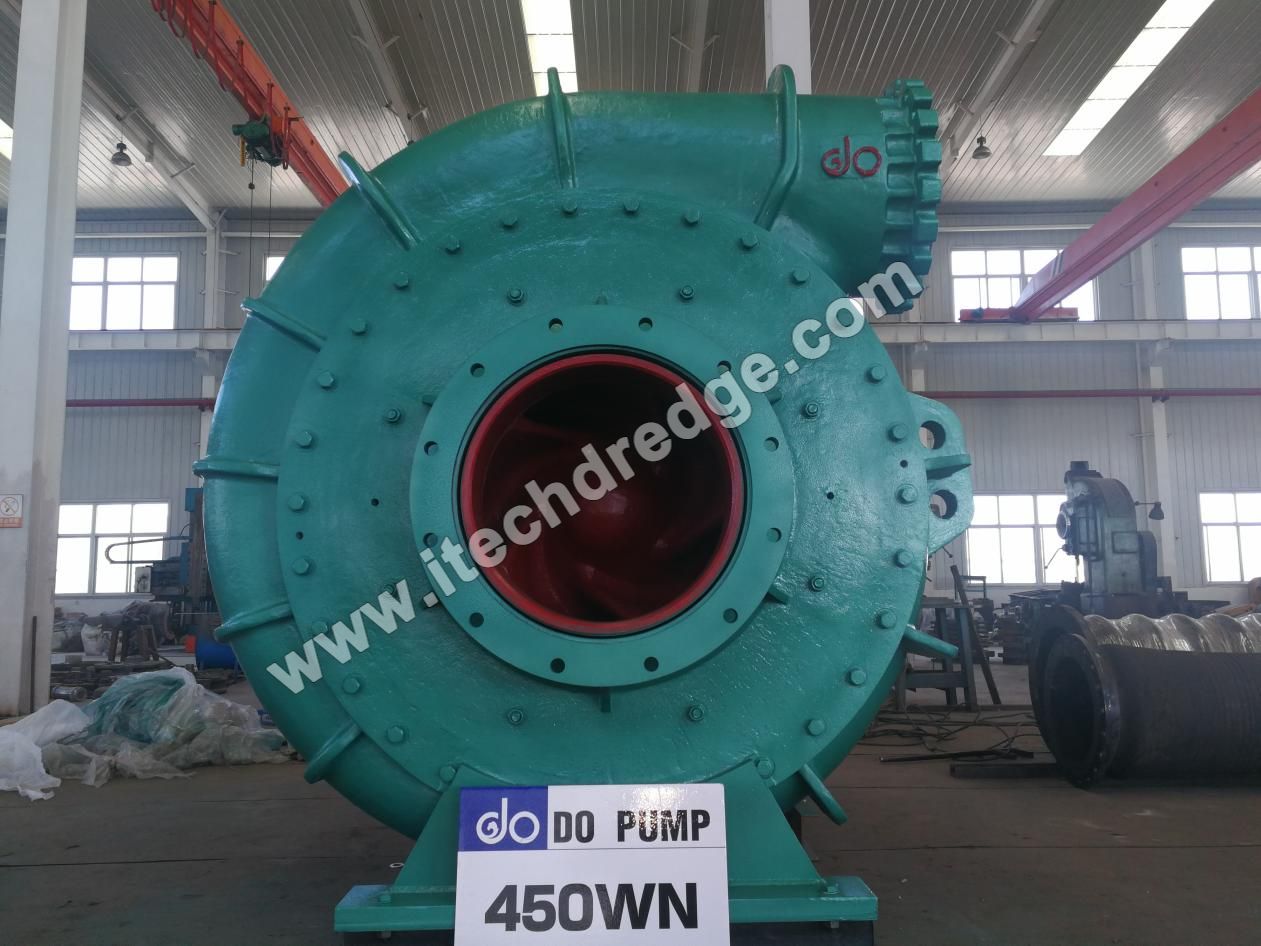

Cutter suction dredgers can handle a wide variety of sediment types, from soft silt and clay to relatively hard materials like gravel and even some types of rock (if equipped with appropriate cutter heads). The power of the cutter head and the capacity of the suction pump determine the volume of sediment that can be processed.
The slurry that is pumped through the pipeline can have a relatively high concentration of sediment, which means that a significant amount of material can be transported in a single operation. However, the pipeline diameter and the length of the pipeline can affect the efficiency of material transport. Longer pipelines may require booster pumps to maintain the flow of the slurry. Cutter suction dredgers are often used when the sediment needs to be transported over long distances, as the pipeline system can be extended as required.
Trailing suction hopper dredgers are well - suited for handling loose and soft materials such as sand, silt, and clay. The size of the hopper on the dredger determines the amount of sediment that can be stored during a single dredging cycle.
Larger TSHDs can have hopper capacities of thousands of cubic meters. The dredger can continue to operate until the hopper is full, at which point it needs to travel to the disposal site. The process of filling the hopper is relatively fast, especially in areas with abundant soft sediment. However, when dealing with harder materials, the suction efficiency may be reduced, and additional measures such as pre - treatment of the sediment (e.g., using water jets to loosen hard materials) may be required.
Cutter suction dredgers are generally considered more cost - effective for smaller - scale projects or projects where the dredging area is relatively confined. Their initial cost may be lower compared to some large trailing suction hopper dredgers, especially for smaller models.
The operating cost of a cutter suction dredger depends on factors such as the power consumption of the cutter head and the pump, the cost of maintaining the mooring system, and the cost of pipeline installation and maintenance (if applicable). They can be highly efficient in terms of the amount of sediment they can process per unit of time, especially when the dredging conditions are favorable and the sediment is easy to cut and transport. However, the process of setting up the dredger, including mooring and pipeline installation, can take some time, which may affect the overall project schedule.
Trailing suction hopper dredgers, especially large - scale ones, have a relatively high initial cost due to their complex design, self - propelled capabilities, and large hopper capacities. The operating cost also includes fuel consumption for propulsion, as well as the cost of maintaining the vessel's engines and other mechanical components.
However, for large - scale dredging projects over extensive areas, TSHDs can be very efficient. Their ability to quickly move between dredging and disposal sites and their high hopper capacities mean that they can remove large volumes of sediment in a relatively short time. In some cases, the efficiency of a TSHD can offset its higher cost, especially when considering the overall cost - effectiveness of completing a large - scale project in a timely manner.
During operation, cutter suction dredgers can cause some disturbance to the local aquatic environment. The cutting action of the cutter head can stir up sediment, which may temporarily reduce water clarity and affect aquatic organisms. However, the use of pipelines for transporting the slurry can help contain the sediment and reduce the spread of pollutants in the water.
Some modern cutter suction dredgers are equipped with environmental protection features, such as sediment curtains around the dredging area to minimize the dispersion of sediment. Additionally, since they are often used in more controlled environments like inland waterways, it may be easier to implement environmental monitoring and mitigation measures.
Trailing suction hopper dredgers can also have an impact on the environment. The suction process can disrupt the seabed or riverbed habitat, affecting benthic organisms. When discharging sediment at the disposal site, there can be potential impacts on the receiving environment, such as changes in water quality and sedimentation patterns.
However, like cutter suction dredgers, modern TSHDs are designed with environmental considerations in mind. Some have advanced sediment separation systems to reduce the amount of water - borne sediment discharged, and they are often required to follow strict environmental regulations regarding disposal location and methods. Their mobility also allows them to access disposal sites that are more suitable from an environmental perspective, as they can travel longer distances compared to some other types of dredgers.
In summary, cutter suction dredgers and trailing suction hopper dredgers have significant differences in their working mechanisms, design, operating range, material handling capabilities, cost - efficiency, and environmental impact. Cutter suction dredgers are well - suited for precise, smaller - scale dredging in calm waters, handling a variety of sediment types and transporting sediment over pipelines. Trailing suction hopper dredgers, on the other hand, are highly mobile, ideal for large - scale projects in open waters, and can store and transport large volumes of sediment in their hoppers. When choosing between the two for a dredging project, factors such as the project location, the type and volume of sediment, the required dredging depth, and cost - efficiency considerations must all be carefully evaluated to ensure the most appropriate and effective dredging solution.
