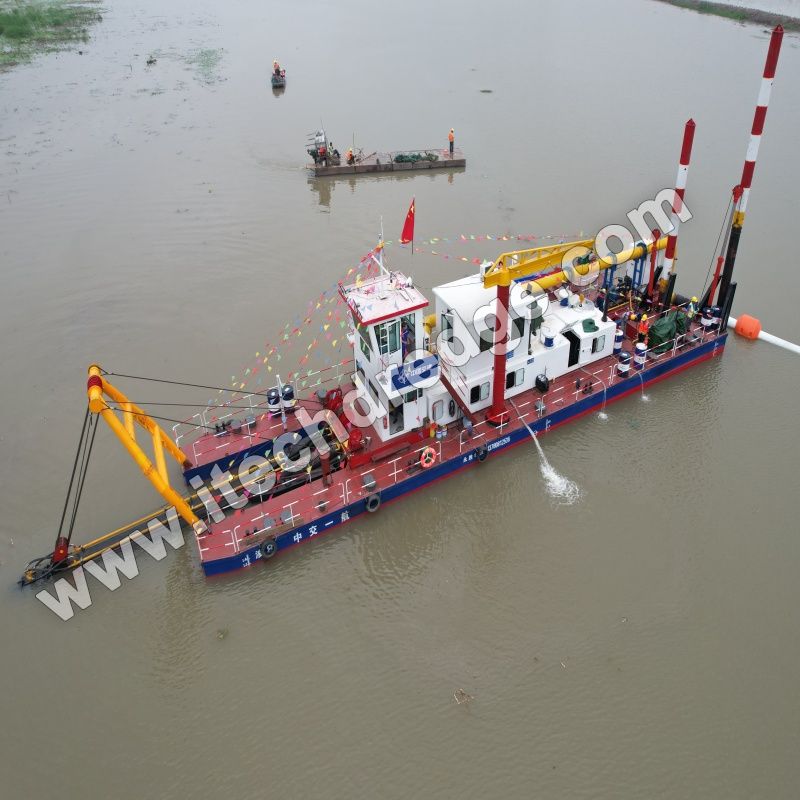

A dredger is a specialized vessel or machine designed to excavate, transport, and dispose of sediments, soil, sand, or other materials from underwater environments such as rivers, harbors, oceans, and lakes. Dredging plays a critical role in maintaining navigable waterways, constructing coastal infrastructure (e.g., ports, artificial islands), land reclamation, and environmental remediation. The working principle of a dredger varies significantly based on its type, with each design optimized for specific tasks. Below is an in-depth analysis of the core mechanisms behind the most common dredger types.

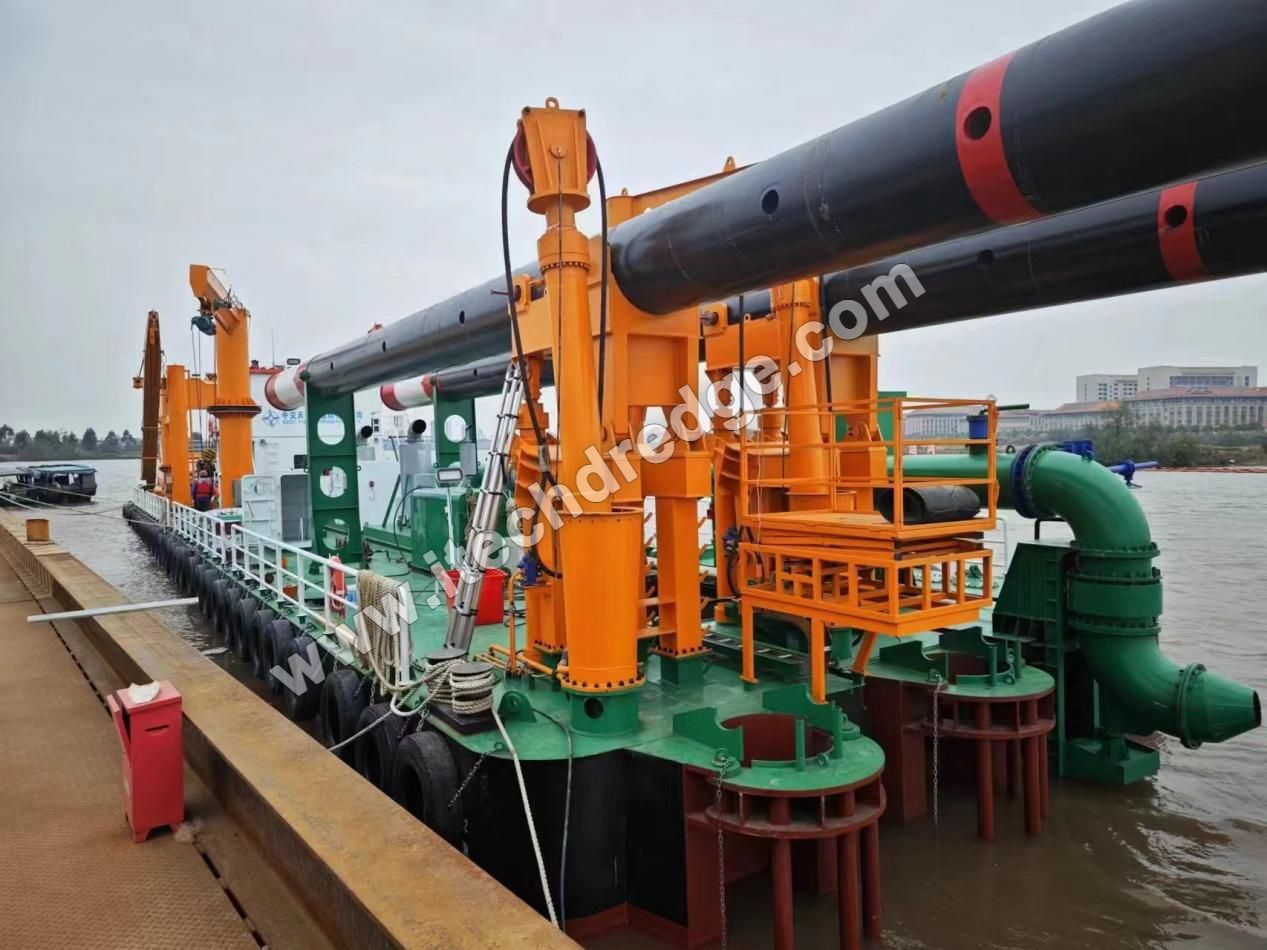

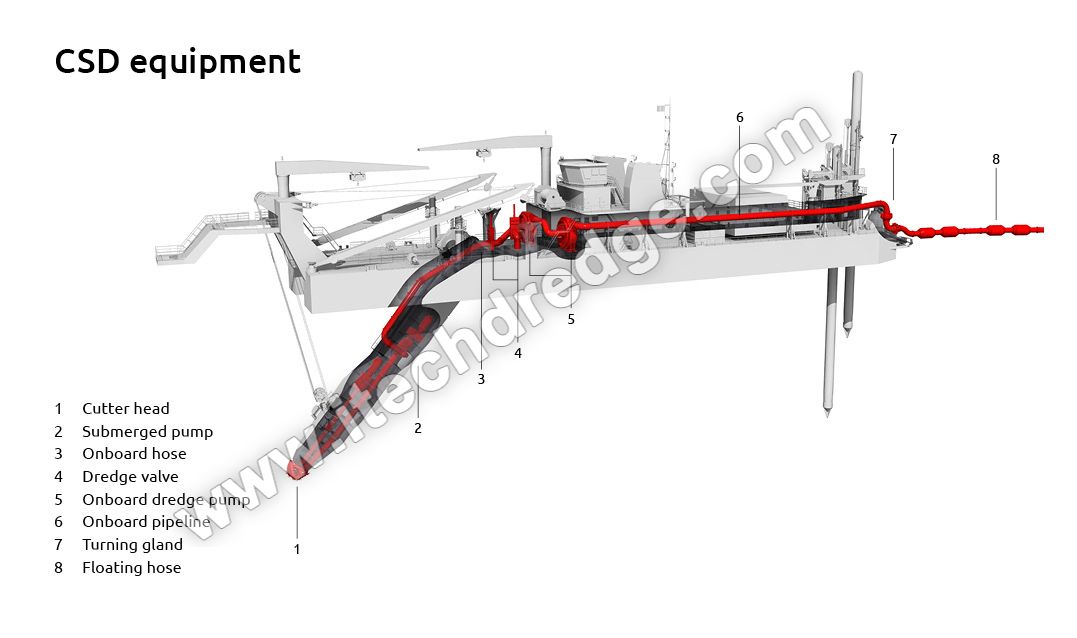

Structure and Core Components:
· Cutter Head: A rotating, tooth-equipped drum at the front of the dredger, designed to break up hard sediments (e.g., clay, sand, or soft rock).
· Suction Pipe: Connects the cutter head to the pump system, transporting excavated material as a slurry (mixture of sediment and water).
· Centrifugal Pump: Generates suction to draw the slurry through the pipe and propel it toward the discharge site.
· Discharge Pipeline: A network of pipes (often floating or submerged) that carries the slurry to the disposal or reclamation area.
Working Principle:
1. Sediment Disruption: The cutter head rotates at high speed, cutting and agitating the seabed or riverbed to break sediments into smaller particles. This step is crucial for dense materials like compacted clay or rock.
2. Slurry Formation: As the cutter head disturbs the sediment, water is mixed with the particles to form a slurry, which is easier to transport.
3. Suction and Pumping: The centrifugal pump creates a vacuum effect, drawing the slurry through the suction pipe. The pump’s impeller accelerates the slurry, converting kinetic energy into pressure energy to move it through the pipeline.
4. Transport and Disposal: The slurry is pumped through the discharge pipeline, often over long distances (up to several kilometers), to areas such as land reclamation sites or disposal basins. The water gradually separates from the sediment, which settles to form new land.
Example Application:
Cutter suction dredgers are widely used in large-scale projects like the construction of Palm Jumeirah in Dubai, where they excavated and transported millions of cubic meters of sand to form artificial islands.

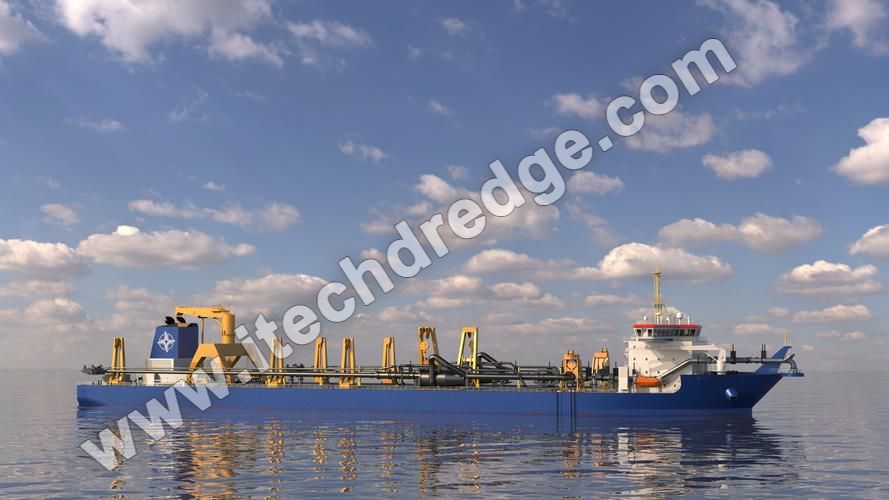

Structure and Core Components:
· Hopper: A large, internal storage compartment within the vessel’s hull, designed to hold excavated sediments.
· Suction Dredge Pipes: Underwater pipes with nozzles that create suction to draw sediment into the hopper.
· Drag Heads: Specialized nozzles that may include a cutter to break up dense sediments before suction.
· Discharge System: Valves or pumps that release the sediment from the hopper, either by gravity or mechanical means.
Working Principle:
1. Navigation and Positioning: The TSHD moves to the dredging site and anchors or uses dynamic positioning (DP) systems to maintain its position.
2. Suction Excavation: The drag head is lowered to the seabed, and the suction pipes create a flow of water and sediment into the hopper. The drag head may vibrate or cut to loosen dense materials.
3. Hopper Filling: The hopper gradually fills with the sediment-water mixture. The vessel may adjust its ballast (water tanks) to maintain stability during loading.
4. Transport and Discharge: Once the hopper is full, the TSHD sails to the disposal site. Sediment is discharged via bottom valves (for loose materials) or pumped out through a pipeline (for more controlled placement, such as in land reclamation).
Example Application:
TSHDs are ideal for maintaining shipping channels, such as those in the Port of Rotterdam, where they regularly remove sediments to ensure deep-water access for large cargo ships.

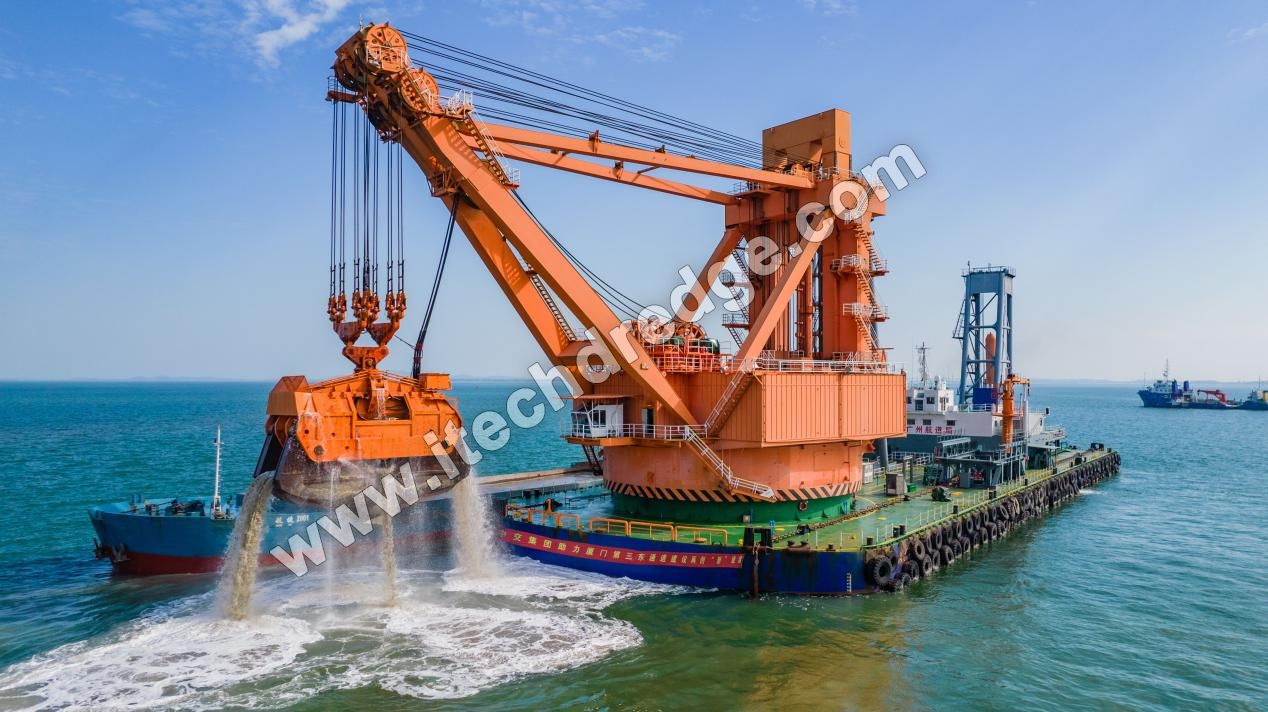

Structure and Core Components:
· Crane Arm: A tall, articulated arm mounted on the vessel, capable of extending over the water.
· Grab Bucket: A clamshell-style bucket with jaws that open and close, designed to scoop up sediments.
· Winch System: Motors and cables that control the movement of the crane arm and grab bucket.
Working Principle:
1. Positioning: The grab dredger anchors near the work site, and the crane arm extends over the area to be dredged.
2. Bucket Deployment: The grab bucket is lowered to the seabed with open jaws.
3. Excavation: Once on the seabed, the jaws close, trapping sediment inside. The winch system lifts the bucket out of the water.
4. Transport and Disposal: The crane arm swings over the vessel’s deck (or a nearby barge) and opens the bucket to release the sediment. For disposal, the material may be transferred to a barge or directly dumped at a designated site.
Example Application:
Grab dredgers are used for small-scale projects or areas requiring precise excavation, such as removing debris from harbors or dredging around sensitive marine structures.
Structure and Core Components:
· Bucket Ladder: A chain of interconnected buckets mounted on a rotating arm, similar to a conveyor belt.
· Driving Mechanism: Motors that rotate the bucket ladder, allowing continuous excavation.
· Chute or Conveyor System: Transfers sediments from the buckets to a discharge point.
Working Principle:
1. Ladder Positioning: The bucket ladder is lowered to the seabed, with the buckets submerged.
2. Continuous Excavation: As the ladder rotates, each bucket scoops up sediment and carries it upward. The sediment falls into a chute or onto a conveyor belt.
3. Material Transport: The conveyor system moves the sediment to a discharge pipeline or directly onto a barge for transport.
4. Advancement: The dredger moves forward slowly as the bucket ladder excavates, creating a continuous trench.
Example Application:
Bucket ladder dredgers are used in large-scale canal projects, such as the expansion of the Suez Canal, where they efficiently remove vast quantities of sediment over long distances.

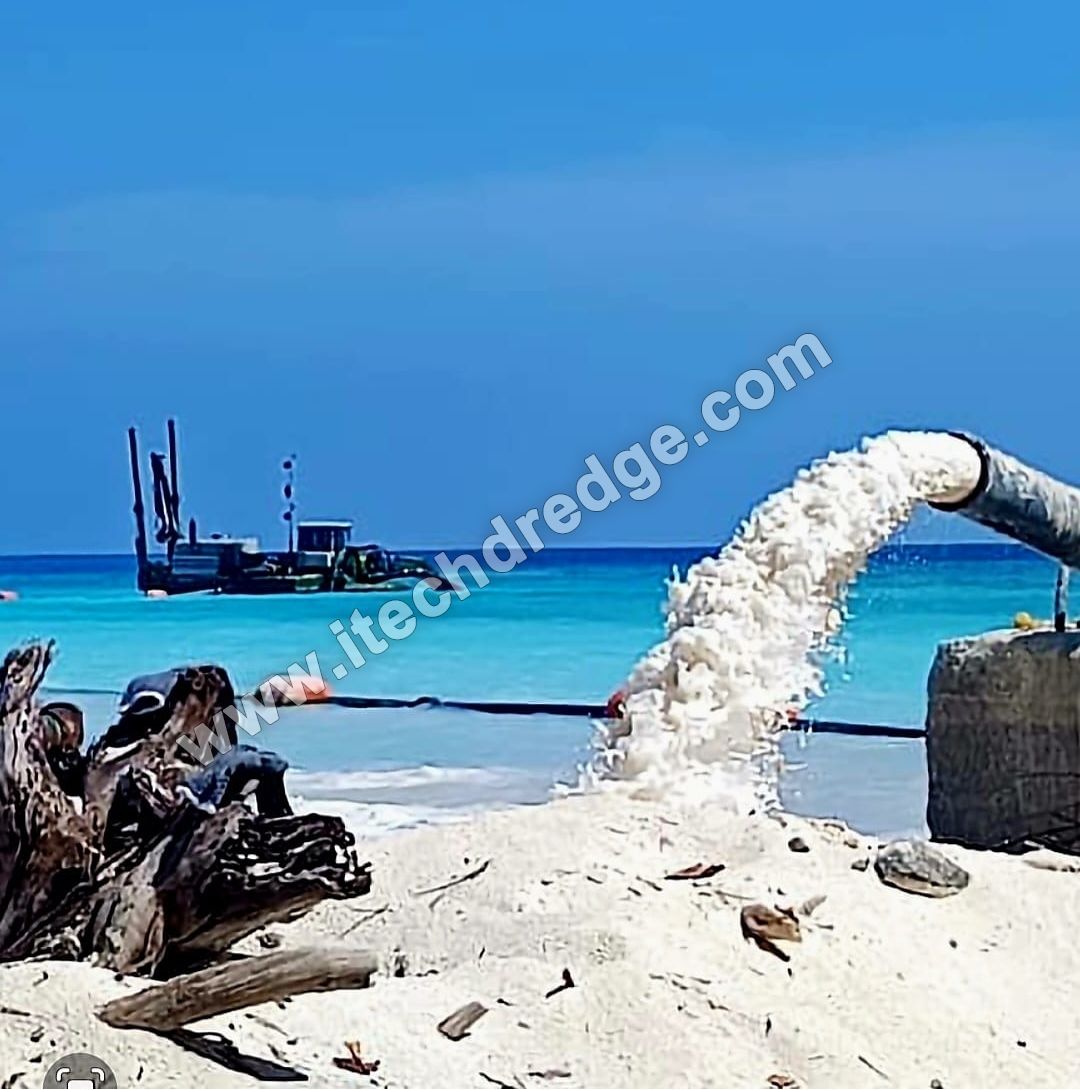

· Slurry Viscosity: The ratio of sediment to water in the slurry affects its flow rate. Dredgers adjust suction power and water injection to maintain an optimal viscosity (typically 15–40% sediment by volume) for efficient transport.
· Pipeline Hydraulics: The design of discharge pipelines considers factors like pipe diameter, length, and elevation changes to minimize friction and prevent sediment settling. For example, cutter suction dredgers may use booster pumps along the pipeline to maintain pressure.
· Anchoring Systems: Traditional dredgers use anchors and winches to hold position, while modern vessels employ DP systems that use thrusters and GPS to maintain precise location, essential for accurate excavation.
· Surveying Technology: Sonar and GPS are used to map the seabed before dredging, ensuring the vessel targets the correct areas and avoids underwater obstacles.

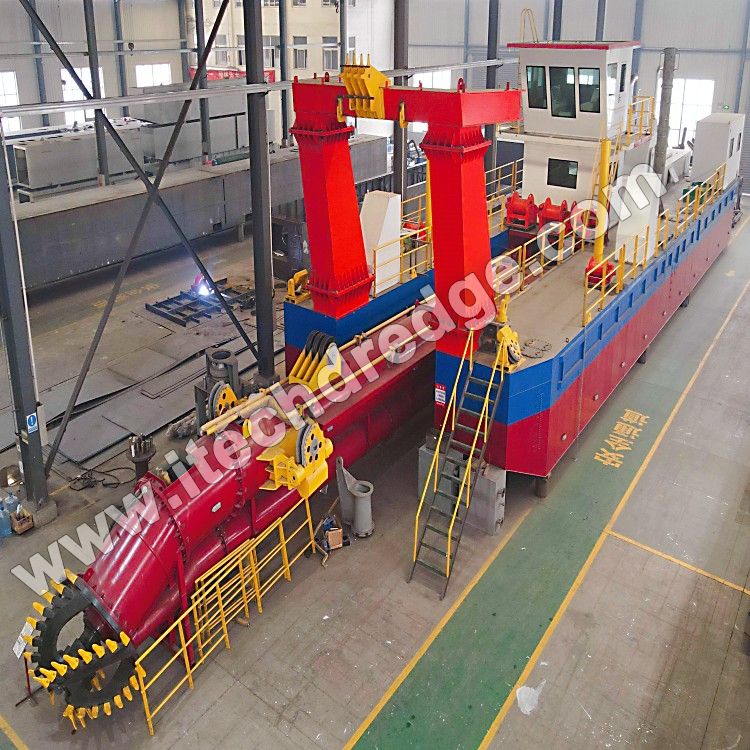

Automation and AI:
· Autonomous dredgers use sensors and AI algorithms to optimize excavation paths, reduce energy consumption, and minimize human error.
· Real-time data analysis allows operators to adjust dredging parameters (e.g., cutter speed, suction power) for maximum efficiency.
Environmentally Friendly Designs:
· Eco-friendly dredgers feature closed-loop systems to prevent sediment leakage, reducing impacts on marine ecosystems.
· Electric-powered dredgers are emerging to minimize carbon emissions, especially in coastal areas with strict environmental regulations.
Deepwater Dredging:
· Specialized deepwater dredgers can operate at depths of up to 3,000 meters, using remotely operated vehicles (ROVs) to assist with excavation in extreme environments.
· Port Expansion: The Port of Shanghai uses cutter suction dredgers to deepen its channels, enabling larger container ships to dock.
· Land Reclamation: Singapore has used TSHDs and CSDs to expand its land area by over 25% since the 1960s, primarily for urban development.
· Environmental Remediation: Dredgers are used to remove toxic sediments from polluted waterways, such as the Hudson River in the United States, where contaminated soil is excavated and safely disposed of.

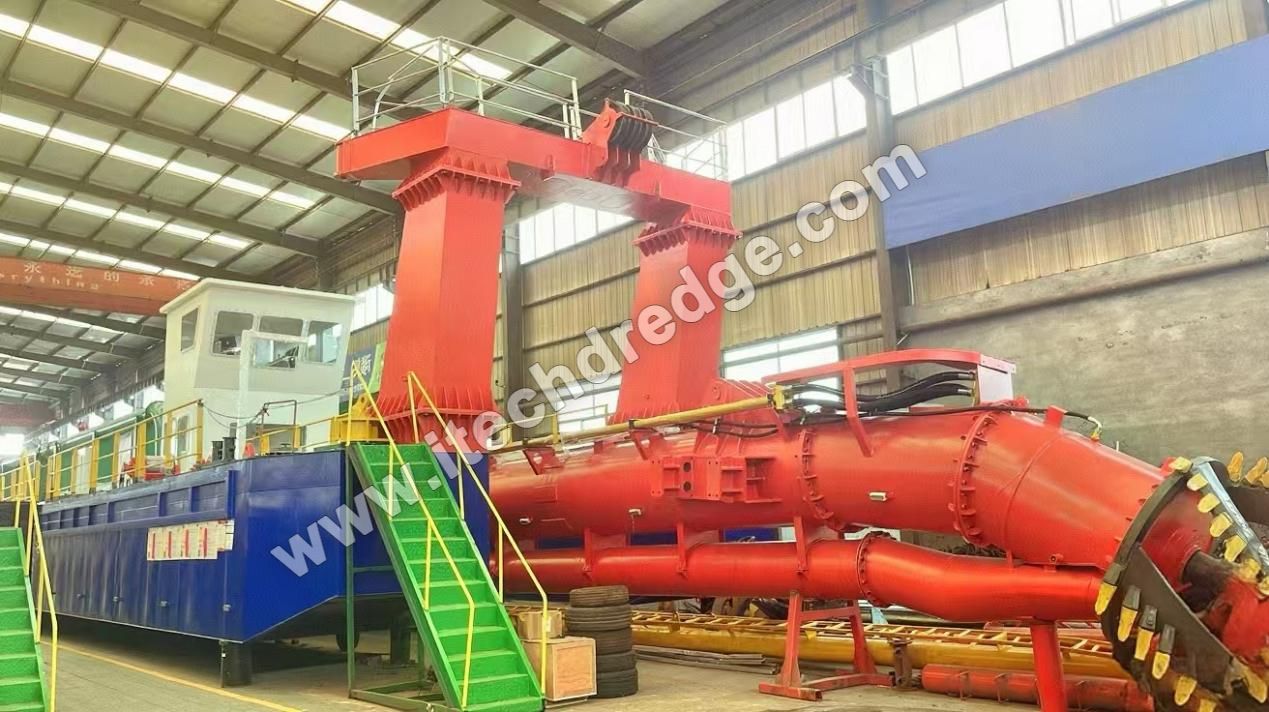

· Environmental Impact: Dredging can disturb marine habitats, displace species, and release pollutants. Modern projects require extensive environmental impact assessments (EIAs) to mitigate these effects.
· Geotechnical Complexity: Hard sediments or underwater rocks require specialized equipment, such as cutter heads with reinforced teeth or explosives (in rare cases).
· Cost and Logistics: Large-scale dredging projects involve high capital costs, including vessel operation, pipeline installation, and sediment disposal.
Dredgers have evolved from simple manual excavators to sophisticated, technologically advanced machines, driven by the needs of global infrastructure and environmental management. Their working principles combine mechanical engineering, fluid dynamics, and precision navigation to tackle some of the most challenging marine construction tasks. As climate change and urbanization drive demand for coastal resilience and land expansion, the dredging industry will continue to innovate, prioritizing efficiency, sustainability, and minimal environmental impact.
Whether deepening shipping lanes, creating new islands, or cleaning polluted waters, dredgers remain indispensable tools in humanity’s quest to shape and maintain our relationship with the world’s waterways.
